Ajax Machine Tools

The range of Ajax gear head pedestal mounted drilling machines are known for their high quality, robust design and manufactured in Europe.

The range starts at 25mm capacity up to the huge 70mm capacity machine, all gear driven heads fully immersed in oil are designed for heavy-duty and long life and total range has automatic drill ejection from spindle.

Push button control of forward/reverse spindle direction, emergency switch, interlocked drill guard, table rise and fall by rack and pinion movement, ease of speed change.

The machines have in-built low voltage lighting and are fully CE marked. 2 year warranty.

All machines from the AJ32 upwards are complete with automatic spindle feed which can be preset to a desired depth, coolant pump and piping.

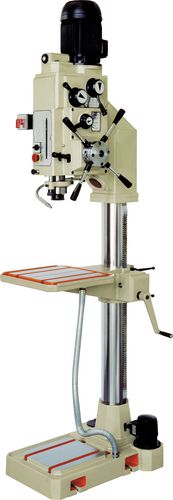

Gear Head Pedestal Drill

Model No: AJ32
Drilling Capacity: 32mm
Spindle Taper: MT4
Spindle Travel: 160mm
Speed: 75-2100rpm
No. of Speeds: 8
No. of Feeds: 3
Table Size: 400x420mm
Voltage: 400V 3pH 50Hz
Main Motor: 1.1kW
Weight: 292Kg

For all dimensional specifications please refer to our catalogue.
