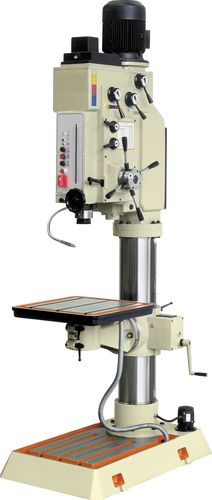

AJ70 PEDESTAL DRILLING MACHINE 400V 3PH
产品品牌:
产品编号:AJX2712139S
单位:
价格:询价
产品描述:
Ajax Machine Tools
The range of Ajax gear head pedestal mounted drilling machines are known for their high quality, robust design and manufactured in Europe.
The range starts at 25mm capacity up to the huge 70mm capacity machine, all gear driven heads fully immersed in oil are designed for heavy-duty and long life and total range has automatic drill ejection from spindle.
Push button control of forward/reverse spindle direction, emergency switch, interlocked drill guard, table rise and fall by rack and pinion movement, ease of speed change.
The machines have in-built low voltage lighting and are fully CE marked. 2 year warranty.
All machines from the AJ32 upwards are complete with automatic spindle feed which can be preset to a desired depth, coolant pump and piping.
Gear Head Pedestal Drill
Model No: AJ70
Drilling Capacity: 70mm
Spindle Taper: MT5
Spindle Travel: 300mm
Speed: 35-1238rpm
No. of Speeds: 12
No. of Feeds: 6
Table Size: 600x600mm
Voltage: 400V 3pH 50Hz
Main Motor: 5.5kW
Weight: 1150Kg
For all dimensional specifications please refer to our catalogue.
Specification:
Property
Value
WEEE Compliant
Yes
UNSPSC Code
23101502
eCl@ss Code
36600203
Brand
Ajax Machine Tools
Supplier Part No.
AJ70
Base size (mm)
1190 x 730
Column diameter (mm)
220
Speed (rpm)
35 - 1238
Table Size (mm)
600 x 600
Weight each
1150kg
Column to spindle (mm)
420
Overall height (m)
3.05
Table to base (mm)
70 - 777
No. of Feeds
6
Drilling Capacity
70mm
Spindle Taper
MT5
Main Motor
5.5kW
Model Number
AJ70
No. of Speeds
12
Spindle Travel
300
PDF目录:
Industrial Supplies 2013
Page 432
Safety and Environmental Markings:
No safety information available for this product.
