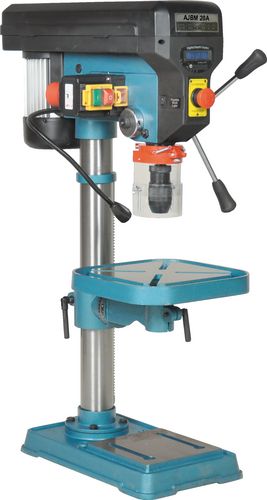

AJBM20A BENCH DRILLING MACHINE 230V 1PH
产品品牌：
产品编号：AJX2712420X
单位：
价格：询价
产品描述：
Ajax Machine Tools

The Ajax range of belt driven drilling machines encompasses, 1 bench model AJBM20A and 2 pedestal models AJPM20A and AJPM32A.
Available in both 230V 1pH 50/60Hz and 400V 3pH 50/60Hz.

Standard equipment
Keyless drill chuck.
Digital readout for drilling depth.
Interlocked belt guard.
Machine light.
AJPM32A includes machine vice.

Bench Drills

AJBM20A Specification:
Bench Mounted.
Belt Driven.
Chuck Capacity: 16mm
Drilling Capacity: 20mm
Spindle Travel: 85mm
Throat Depth: 180mm
Spindle Size: MT2
Table Size: 305x305mm
No. of Speeds: 12
Speed: 280-2380rpm

Available as:
230V/1pH Order Code: AJX-271-2420Y
400/3pH Order Code: AJX-271-2420X

Specification:

Property	Value
WEEE Compliant	Yes
UNSPSC Code	23101502
eCl@ss Code	36600203
Brand	Ajax Machine Tools
Supplier Part No.	AJBM20A
Table Size (mm)	305 x 305
Drilling Capacity	20mm
No. of Speeds	16
Throat Depth	180mm
Speed (rpm)	180 - 2770
Chuck Capacity	16mm
Spindle Size	MT2
Voltage	230V/1pH
Spindle Travel	85mm
Model Number	AJBM20A

PDF目录：
- Industrial Supplies 2013
  Page 432

Safety and Environmental Markings:

No safety information available for this product.
