AJPH280 HYDRAULIC HACKSAW MACHINE 400V 3PH
产品品牌：
产品编号：AJX2712608J
单位：
价格：询价
产品描述：
Ajax Machine Tools

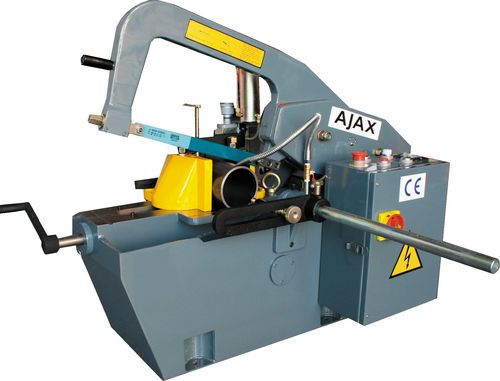

Ajax hydraulic power hacksaw machines are manufactured from a solid cast iron construction and a practical design. The machine vice swivels to allow angular cutting, the bow has infinitely variable cutting feed with automatic cut off at end of cut with rapid bow return.

The machine is complete with blade, length setting gauge, re-circulating coolant system, swarf collection tray, bar end support, bundle cutting and roller stand, fully CE marked.

Hydraulic Power Hacksaw

Model Number: AJPH280
Supply: 400V/3ph 50Hz.
Motor rating: 2hp.
Maximum cut diameter @90: 280mm.
Maximum cut diameter @45: 130mm.
Maximum cut rectangular @90: 250 x 250mm.
Blade speed: 80/100/120SPM.
Blade size: 450 x 32 x 1.6mm.
Weight: 520kg.

Specification:

Property	Value
WEEE Compliant	Yes
UNSPSC Code	23101512
eCl@ss Code	36600503
Brand	Ajax Machine Tools
Supplier Part No.	AJPH280
Blade Size (mm)	450 x 32 x 1.6
Blade Speed SPM	80,100,120
Max 45° Cut Dia.	130mm
Motor Rating	2hp
Max 90° Cut Dia.	280mm
Max Cut Rectangular	250 x 250mm
Model Number	AJPH280
Nett Weight	520kg

PDF目录：
- Industrial Supplies 2013
  Page 444

Safety and Environmental Markings:

No safety information available for this product.
