产品 / 切削工具 / 数控刀具&附件
  • 25030S-004M EXTENDED TAPER SHANK HOLDER
  • 产品品牌：
  • 产品编号：AME1551140P
  • 单位：
  • 价格：询价
  • 产品描述：
    Allied Maxcut Series 3 Holders

    Diameter range: 34.34 to 47.80mm.

    For all dimensional specifications please refer to our catalogue.

    Taper Shank

  • Specification:

    Property Value
    UNSPSC Code 23242106
    eCl@ss Code 28039190
    Brand Allied Maxcut
    Supplier Part No. 25030S-004M

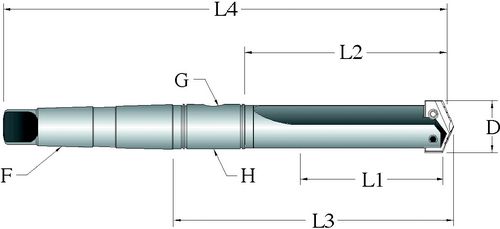

    Drilling Diameter Range D (mm) 34.34 - 47.80
    G (BSP) 1/4"
    Holder Type Extended
    Flute Type Straight
    H (RCA) 4SRM
    L1 (mm) 349.0
    L2 (mm) 381.0
    L3 (mm) 435.0
    L4 (mm) 547.7
    Product Number 25035S-004M
    Shank Taper 4MT
  • PDF目录：
