产品 / 切削工具 / 数控刀具&附件
  • 25010H-25FM HS S/S TOOLHOLDER
  • 产品品牌：
  • 产品编号：AME1552550L
  • 单位：
  • 价格：询价
  • 产品描述：
    Allied Maxcut Series 1 and 1.5 Holders

    Diameter range: 17.53 to 24.38mm.

    For all dimensional specifications please refer to our catalogue.

    Flanged Straight Shank

  • Specification:

    Property Value
    UNSPSC Code 23242106
    eCl@ss Code 28039190
    Brand Allied Maxcut
    Supplier Part No. 25010H-25FM
    Product Number 25010H-25FM

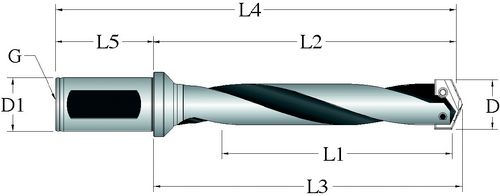

    Shank Dia. D1 25.0
    L5 (mm) 53.1
    G (BSP) 1/8"
    Holder Type Extended
    Drilling Diameter Range D (mm) 17.53 - 24.38
    Flute Length Helical
    L1 (mm) 270
    L2 (mm) 307.2
    L3 (mm) 310.8
    L4 (mm) 360.3
  • PDF目录：
