产品 / 切削工具 / 数控刀具&附件

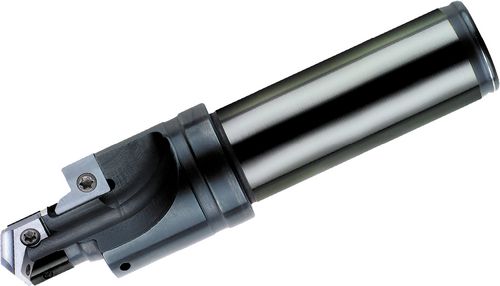

  • J1926-080-20FM ACCUPORT 432 CUTTER
  • 产品品牌：
  • 产品编号：AME1556240D
  • 单位：
  • 价格：询价
  • 产品描述：
    Accuport 432 Port Contour Cutter Range

    For all dimensional information please refer to our catalogue.
    Port Standards: SAE J-1926/ISO11926-1 and MS16142.



  • Specification:

    Property Value
    UNSPSC Code 23242106
    eCl@ss Code 28039190
    Brand Allied Maxcut
    Supplier Part No. J1926-080-20FM
    AMEC Port Contour Cutter No. J1926-080-20FM
    Port Thread Size 3/4-16 UNF-2B
    Seal Angle 15°
    Tube Dash No. -8
    L6 OAL 101.1
    L5 Shank Length 51.6
    L4 Spotface to Shoulder Length 29.2
    L3 Ref. Length 50.3
    A Minor Dia. 17.5
    L2 Seal Angle Length 2.7
    B Spotface Dia. 30.7
    C Seal Angle Dia. 20.7
    D Shank Dia. 20
    L1 Minor Dia. 17.5
  • PDF目录：
