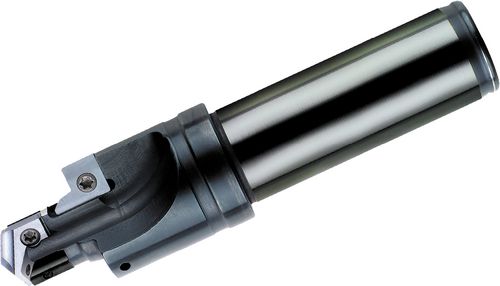

  • J1926-142-32FM ACCUPORT 432 CUTTER
  • 产品品牌：
  • 产品编号：AME1556270G
  • 单位：
  • 价格：询价
  • 产品描述：
    Accuport 432 Port Contour Cutter Range

    For all dimensional information please refer to our catalogue.
    Port Standards: SAE J-1926/ISO11926-1 and MS16142.



  • Specification:

    Property Value
    UNSPSC Code 23242106
    eCl@ss Code 28039190
    Brand Allied Maxcut
    Supplier Part No. J1926-142-32FM
    L2 Seal Angle Length 3.5
    AMEC Port Contour Cutter No. J1926-142-32FM
    Port Thread Size 13/16-12 UN-2B
    Seal Angle 15°
    Tube Dash No. -14
    L6 OAL 125.0
    L5 Shank Length 57.9
    L4 Spotface to Shoulder Length 38.2
    L3 Ref. Length 67.1
    A Minor Dia. 28.0
    B Spotface Dia. 45.3
    C Seal Angle Dia. 32.4
    D Shank Dia. 32
    L1 Minor Dia. 23.0
  • PDF目录：
