Atlas? Workholding Toggle Clamps

Atlas? Workholding's comprehensive range of fixed grip toggle clamps are suitable for many applications including clamping loads, holding components in jigs and fixtures and many more. Designed to improve performance in fabrication and engineering clamping applications. The rapid clamping/unclamping made possible by the use of Atlas? toggle clamps can greatly reduce machine/operator 'down-time' during all stages of production.

Low profile clamps suitable for use in general applications requiring increased access to the actual work piece.

Force applied downwards 90 to bar.

Horizontal Industrial Toggle Clamps

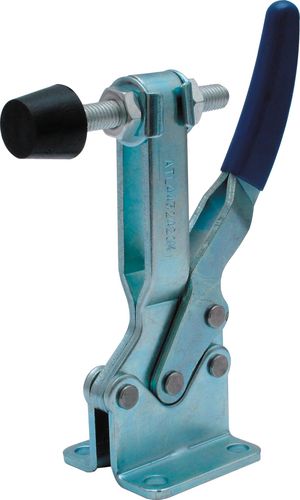

Atlas? Workholding AH350-FA Vertical Horizontal Toggle Clamp

Capacities:
Holding capacity: 340kg
Adjustable "U" bar type.
Movement: handle: 50. bar: 85.
Bolt retainer M10 x 9.
Flat flanged base.
Weight: 265g

For all dimensional specifications please refer to our catalogue.
