Series S6520

Micro Super-Rapid fittings allow fast connection and disconnection of plastic tube, it can be repeated several times and can be performed using one hand and without the use of tools. The sealing ring (O-Ring) can be easily replaced if it is damaged or should the rubber compound from which it is made wear with time. This advantage derives from the simple execution of the internal collet, which can be extracted allowing the replacement of the O-Ring.

General data:
Material body and collet: brass OT nickel-plated O-Ring NBR, seal PTFE, NBR, PA
Threads: M3, M5, M7, G1/8, G1/4.
Pressure: min. -0,8 to max. 16 bar (see tubing).
Tube to connect rilsan: PA 6 - 11 - 12 , polyethylene, polyurethane.
Diameters: 3, 4, 6, 8 and 10mm.
Fluid: compressed air (for other types of fluid, contact our engineers).
Temperature: -10C to 60C (see data for tubing used).

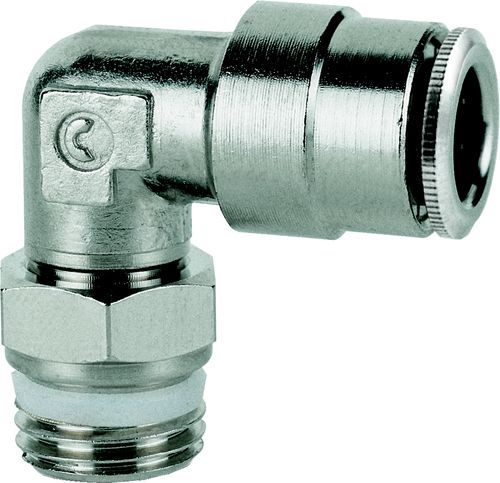

Male Stud Swivel Elbow
