  • A095 SET 201 HSS-TIN JOBBER DRILLS (19-PCE)
  • 产品品牌:
  • 产品编号:DOR0250948Z
  • 单位:
  • 价格:询价
  • 产品描述:
    Dormer Jobber Drill Sets

    Dormer's A002 Jobber Drill has a standard helix, it is right hand and has wider flutes for efficient chip removal. 118 point geometry. TiN coated on the tip for high wear resistance, lower friction and allows increased cutting speeds. Suitable for general-purpose drilling.
    The Dormer A002 Jobber drill delivers the following features and benefits:
    Improved web design optimises strength and rigidity and increases feed capability
    Ground wide flutes allow for efficient chip evacuation
    Optimised throughout the helix range for greater rigidity
    Bright body improves application on ductile materials
    Titanium Nitride coating focused on the working surfaces to resist flank and crater wear, and to provide low friction and increased performance
    Special Dormer P.S. Point increases ease of penetration, improves hole size and provides accurate centering
    General purpose engineering drills
    Manufactured to BS328:Part 1:1986.

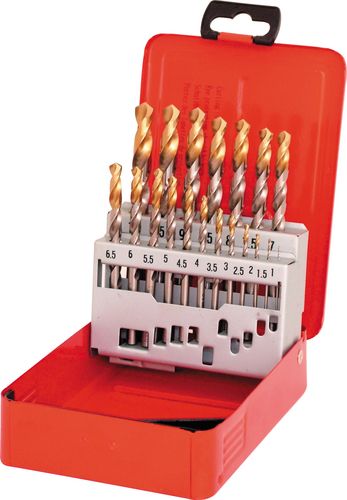

    No.201 Drill 19 Piece Set 1.0-13.0mm

    Dormer No.201 Drill Set contains in increments of 0.5mm.
    Metric sizes:
    1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0mm.
  • Specification:

    Property Value
    UNSPSC Code 23241634
    eCl@ss Code 21010101
    Brand Dormer
    Supplier Part No. A095201
    Number Pieces 19
    Product Number A095201
    Range x Increment 1.0 - 10.0 x 0.5
