产品 / 工装夹具 / 快速异型夹
  • W2830SF HEAVY DUTY WELD
  • 产品品牌:
  • 产品编号:IND4435090K
  • 单位:
  • 价格:询价
  • 产品描述:

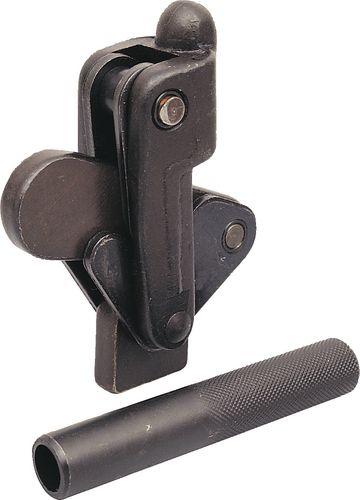

    Heavy Duty Weldable Toggle Clamps

    Hold down action suitable for high production automotive type applications. Heavy duty forged components with hardened and ground pivot points. The users provide their own handle and bar and weld them to the clamp which is then welded to a base. These flexible mounting clamps allows them to be used in situations where standard clamps are not effective.



  • Specification:

    Property Value
    UNSPSC Code 27112132
    eCl@ss Code 21020501
    Brand Indexa
    Supplier Part No. GH-70610
    Base Width 50mm
    Clamp Height with Handle 170mm
    Holding Capacity 2200kg
    Weight each 2749g
  • PDF目录:
