FWR 3/8" RATCHET WRENCH
产品品牌:
产品编号:KBE2702360K
单位:1
价格:1372.8
产品描述:

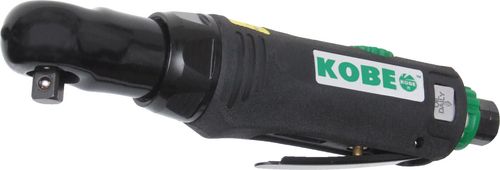

Kobe Speed Air Ratchets
Suitable for the removal and installation of threaded fasteners when doing automotive and light assembly work. Reversible hardened steel square drive. Rubber handle provides grip and operator comfort with reduced hand chill. Three planetary gears for longer life and smoother running. Rubber cover protects the ratchet head and the workpiece. Short body length allows access into hard to reach areas. Low profile teasing throttle for precise speed control. Rotating rear exhaust with baffle for reduced noise. Rotating air inlet to prevent the air hose tangling. Adjustable air regulator.
Air Ratchet Speed Wrench (3/8?? Square Drive)
FSR375.
Specifications:
Working torque range: 7-27Nm (5-20ft-lbs).
Anvil size: 3/8".
Free speed: 200rpm.
Air inlet thread: 1/4" NPT.
Minimum air hose size (ID): 10mm (3/8").
Air pressure: 6.2bar (90psi).
Air consumption: 113Ltr/m (4CFM)*.
Sound power level: 88dB(A).
Sound pressure/noise level: 84dB(A).
Vibration level: 1.8m/s2.
Overall length: 205mm.
Net weight: 640g.
*Based on a 15 second cycle per minute average use.
Specification:
Property
Value
Overall Length
220
Overall Width
55
Overall Depth
60
Overall Weight
0.705
UNSPSC Code
27131501
eCl@ss Code
21060900
Brand
Kobe Industrial Air Tools
Model Number
FSR375
Sound Power Level
88dBA
Sound Pressure/ Noise Level
84dBA
Square Drive
3/8"
Vibration Level
1.8 m/s2
Weight each
640g
Working Torque Range
7-27Nm
Supplier Part No.
SM-33-3014
