  • SAC AUTO SHUT-OFF SCREWDRIVER REV
  • 产品品牌:
  • 产品编号:KBE2703760K
  • 单位:1
  • 价格:4132.3
  • 产品描述:

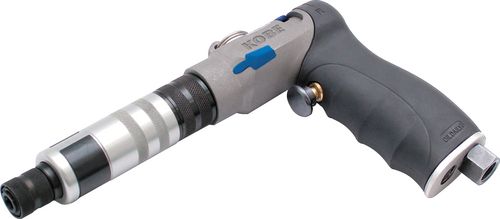

    Kobe Automatic Shut-off Air Screwdriver

    Heavy duty reverse action pistol grip screwdriver suitable for production and assembly applications. Push to start type with auto shut-off clutch for precision applications. 3 interchangeable torque springs allow for easy conversion for new applications. 1/4" hex drive. External torque adjustment does not require disassembly of the tool. Variable speed throttle. Ergonomically contoured grip for operator comfort. Handle exhaust directs air away from the workpiece and operator. Hanging ring included.

    CSP005S.
    Chuck size: 1/4??(6mm) Hex.
    Air inlet thread: 1/4?? NPT.
    Minimum air hose size (ID): 3/8?? (10mm).
    Green torque spring: 0.6-2.1Nm (5-19??/Lbs).
    Black torque spring: 1.1-4.3Nm (10-38??/Lbs).
    Yellow torque spring: 1.7-5.1Nm (15-45??/Lbs).
    Air pressure: 90psi/6.2bar.
    Air consumption: 4CFM.
    Sound pressure level: 84dB(A).
    Sound power level: 93dB(A).
    Vibration level: 0.5 m/s2.
    Overall length: 210mm.
    Net weight: 815g.



  • Specification:

    Property Value
    Overall Length 245
    Overall Width 170
    Overall Depth 45
    Overall Weight 0.965
    UNSPSC Code 27131502
    eCl@ss Code 21060000
    Brand Kobe Tools
    Weight each 815g
    Supplier Part No. CSP005s
  • PDF目录:
  • The following documents are also available for this product::

    • Tech Info
    • User Guide
