Speed Ratches

R7722
Suitable for the removal and installation of threaded fasteners. Reversible hardened steel 1/4? square drive. Short body length allowing access into hard to reach areas. Planetary gears for longer life and smoother running. Low profile throttle for precise speed control. Rotating air inlet to prevent the air hose tangling.

Model number: R7722
Drive size: 1/4? (6mm).
Free speed: 200rpm.
Recommended air pressure: 6.2Bar (90PSI).
Air consumption:4CFM (113ltr/min).
Working torque range: 7 ~ 27nm (5 ~ 20ft/lbs).
Air inlet thread: 1/4? NPT.
Minimum air hose size (ID): 10mm (3/8?).
Noise level?: 80dBA.
Sound pressure/power level?: 88dBA.
Vibration level#: 1.8m/s2.
Overall length: 200mm.
Net weight: 0.65kg.

? Per Pneurop Standard EN ISO 15744:2002.
# Per EN 28927-1.

Action shots:
Spring loaded ball socket retainer.
Protective rubber head cover.
Lever operated throttle.
Directional rear exhaust.
Forward / Reverse lever switch.
Vibration dampened rubber grip.
Adjustable air (speed)regulator.

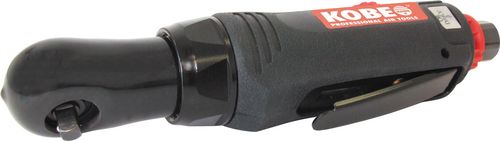

Kobe Speed Ratchet 1/4? Square Drive - 200RPM
