产品 / 工装夹具 /  机床附件
  • REVOLVING CENTRE 4MT STANDARD DUTY
  • 产品品牌：
  • 产品编号：KEN4881040K
  • 单位：1
  • 价格：2603.1
  • 产品描述：

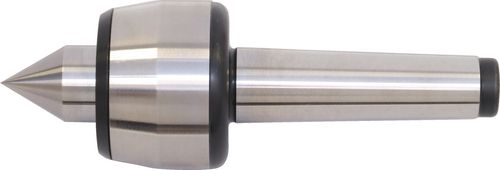

    Kennedy® Standard Duty Revolving Centres

    Manufactured from high alloy steel hardened and tempered then precision ground externally. Precision bearings are fitted as standard and the centres have a 60° point. Maximum Runout: No 1 to 4 taper: 0.005mm, No 5 to 6 taper: 0.010mm.



  • Specification:

    Property Value
    Overall Length 227
    Overall Width 89
    Overall Depth 89
    Overall Weight 1.23
    UNSPSC Code 23153013
    eCl@ss Code 23049190
    Brand Kennedy Industrial
    Max rpm 5000
    Morse Taper No.4
    Weight each 1.23kg
    Axial Load (rpm) @100 (kgf) 500
    Axial Load (rpm) @3000 (kgf) 125
    Radial Load (rpm) @100 (kgf) 600
    Radial Load (rpm) @max (kgf) 75
