Kennedy Hydraulic Bottle and Trolley Jacks

Kennedy Hydraulic bottle jacks have large cast iron bases with a steel housing and lift cylinder, that has an adjustable notched load saddle. Each jack is fitted with an overload protection valve. Two piece pumping handle also operates hydraulic release.

For use on a firm level surfaces. DO NOT work under the raised vehicle until another means of support, such as axle stands are in place

GS and TUV approved.

For axle stands see order codes: KEN-503-5520K and KEN-503-5530K.

Hydraulic Bottle Jacks

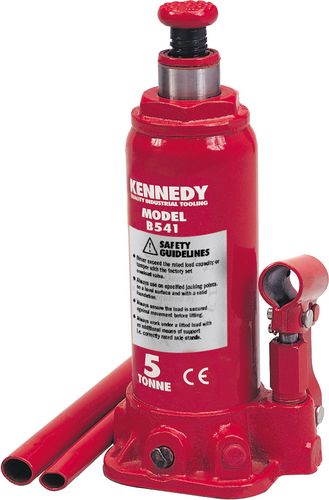

Model number: B541
Maximum load: 5 Metric Tonnes.
Height range: 216 to 416mm Min/Max.
Max saddle adjustment: 70mm.
Weight: 4.90kg.

(Load ratings are Metric Tonnes i.e. 1 tonne = 1,000kg).
Supplied with spare seals.
