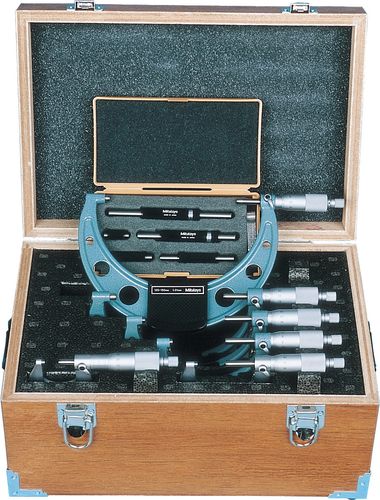

103-927-10 (103-927) MICROMETER & STANDARDS SET
产品品牌：
产品编号：MIT3250690A
单位：
价格：询价
产品描述：
Enamelled Frame External Micrometer Sets
Economy type with carbide tipped anvils. Supplied complete with measuring standard.
Accuracy: Flatness: 0.6um for up to 300mm (12").
Parallelism: (2plusL/100)um (fraction rounded down). Instrument Error: plus/minus(1plusL/75)um (fraction rounded up).
Graduation: 0.01mm/.001".
L equals maximum measuring length.
103 Series
Metric
Range: 0-75.
Set contents: 0-25, 25-50, 0.01 & 50-75mm plus 2 Standards.
Weight: 0.8kg.
Specification:
Property
Value
UNSPSC Code
41111601
eCl@ss Code
21170307
Brand
Mitutoyo
Supplier Part No.
103-927-10
Product Number
103-927
Range
0 - 75
Weight each
0.8kg
Set Contents
0-25, 25-50, 0.01 and 50-75mm. 2 Standards
PDF目录：
Industrial Supplies 2013
Page 661
