  • ELECTRONIC DIGITAL OUTSIDE MICROMETER 0-25mm/0-1"
  • 产品品牌:
  • 产品编号:OXD3315010K
  • 单位:1
  • 价格:2523.5
  • 产品描述:

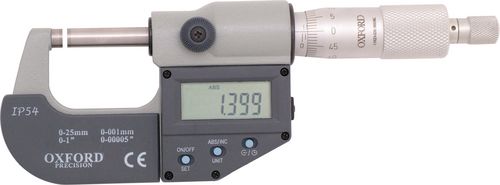

    Digital Electronic External Micrometer

    Easy handling with a large digital display, quick response speed and zero set at any point. mm/inch measurement. The micrometer can be connected to PC's serial port by the SPC cable provided.
    Range: 0-25mm/0-1"
    Resoloution: 0.001mm/0.00005"
    Measuring force: 5-10N
    Accuracy: -0.004mm
    Power Consumption:35m
    Storage temperature: -20 to 60C
    Operating temperature: 0 to 40C
    IP rating: 54IP



  • Specification:

    Property Value
    Overall Length 45
    Overall Width 225
    Overall Depth 120
    Overall Weight 0.25
    WEEE Compliant Yes
    UNSPSC Code 41111601
    eCl@ss Code 21170307
    Brand Oxford Precision
    Range 0 - 25mm/0 - 1"
    Resolution 0.001mm/0.0005"
    Supplier Part No. 040380653
  • PDF目录:
  • The following documents are also available for this product::

    • User Guide
  • Safety and Environmental Markings:

    WEEE Compliant

    No safety information available for this product.
