Pinzbohr Boring Systems

The NEW Bohrstar 54 kits offer the best performance and range of a precision boring system. The kits combine excellent size range with optimum assembly rigidity to ensure greater accuracy and repeatability when boring. Bohrstar? is more user friendly as it is less complicated to set up and use, than equivalent systems available today!

Bohrstar 54 Boring System Kit

The Bohrstar 54 kit from Pinzbohr delivers the following features and benefits:
High strength and rigidity that is required for accuracy and repeatability.
A V-groove locking insert cartridge for improved rigidity.
All the compents of the kit are manufactured from nickel-chromium alloy.
Tapered Screw and Locking Pin Coupling
Tapered screws for most rigid coupling.
Dampens vibration under load.
Pin guarantees accurate head position.
Saves you money on tooling costs.
Saves time on the shop floor.
Performance guarantee.
The Bohrstar kit components are easy to install and require no special training or tools to use.

Boring range: 8 ~ 170mm.
Accuracy: to 0.0001

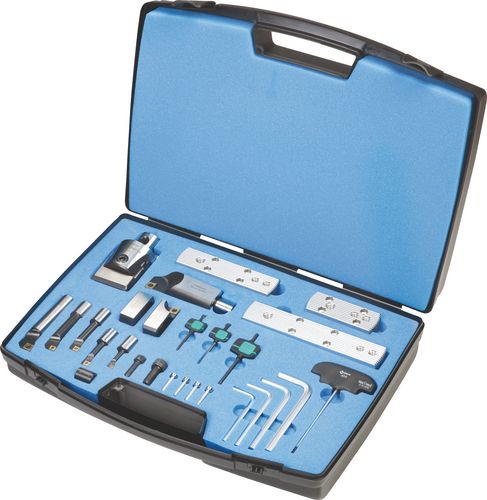

Bohrstar Kit Contents:
1x 54mm Bohrstar head with accu-set dial (38 ~ 59mm).
6x boring bars (8 ~ 43mm).
2x adaptor plates with cartridge insert (83 ~ 170mm).
Also includes counterweight, adjusting key, location sleeve, hexagon key, Torx key and fixing screws.

For all technical specifications please refer to our catalogue.
