Iscar Parting and Grooving Blades

Iscar's new, single-ended insert for parting with an improved
clamping method, tangentially clamped, single-ended parting system

TAG insert features:
Very rigid clamping in a tangentially oriented pocket.
Enables machining at very high feed rates and provides excellent straightness and surface finish.
Recommended for parting large diameter parts and for interrupted cuts.
Offers a free, unobstructed chip flow, since there is no upper jaw as in the other clamping systems (very important in deep grooving and parting applications).
The combination of tangential clamping and free chip flow results in improved tool and insert lifetime.
Provides a solution to the problem of inserts being pulled out during retraction.

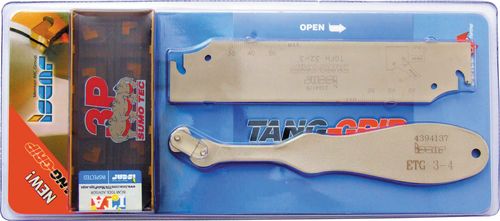

TGFH Part-Off Blade Set

The Iscar TGFH part-off blade set contains:
A double-ended tang-grip blade for parting & grooving.
10x Tag inserts grade IC808.

Grade Description: IC808 (ISO P15-P30, M20-M30, H10-H20, S15-S25)
A hard, fine grain substrate with excellent chipping resistance, combined with a new ?SUMO TEC? TiAlN PVD coating. Provides high wear resistance. Recommended for a very wide range of materials.
