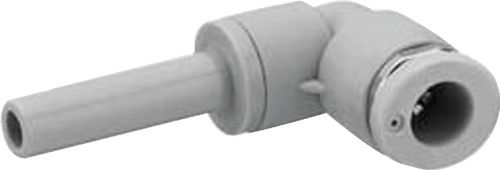

Rexroth Angled Plug-In Connector

QR1-RVA Series
Push-in fitting pin bushing angled plug-in connector.
Diameter: 6mm.

Ambient temperature min/max: +0°C/+60°C.
Working pressure min/max: -0.95bar/10bar.
Materials:
Housing: Polybutyleneterephthalate.
Seal: Acrylonitrile Butadiene Rubber.
Tooth lock washer: Stainless steel.
Release ring: Polyoxymethylene.
Release ring holder: Die cast zinc; Brass, nickel-plated.
