产品 / 切削工具 / 钻孔加工
  • BS1 HSS STANDARD CENTRE DRILL
  • 产品品牌：
  • 产品编号：SHR0251829A
  • 单位：1
  • 价格：72.5
  • 产品描述：

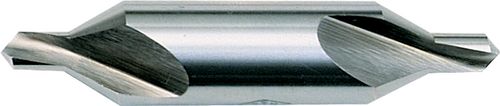

    Sherwood Centre Drills HSS

    Designed with spiral flutes and various lengths and forms to give high quality centre holes that suit most applications. 60 inclusive angle. Manufactured to BS328;Part 2:1986, DIN333A, ISO866, ISO2540, ISO2541.

    For all dimensional specifications please refer to our catalogue.

    Series C100

  • Specification:

    Property Value
    Overall Length 65
    Overall Width 17
    Overall Depth 17
    Overall Weight 0.007
    UNSPSC Code 23241605
    eCl@ss Code 21010101
    Brand Sherwood
    Diameter Body 1/8"
    Dimensions BS1
    Pilot Length Min (inch) 1/16"
    Pilot Length Max (inch) 5/64"
    Pilot Diameter 3/64"
    Supplier Part No. 1150119
  • PDF目录：
