Allied Maxcut Series 2 and 2.5 Inserts

For all dimensional specifications please refer to our catalogue.

GEN2 T-A T-A K35 Carbide AM200 Coated

Granlund Size 1 Pilots

Type RS Roller Tol. c9.

When working 'dry' type R roller pilots must be lubricated. Pilots type RS must be combined with holders type AS.

For all technical specifications please refer to our catalogue.

Granlund Size 1 Pilots

Type F Fixed Tol. c9.

When working ?dry? type R roller pilots must be lubricated. Pilots type RS must be combined with holders type AS.

For all technical specifications please refer to our catalogue.

Indexa-Seiki VDI Toolholders

Manufactured to DIN 69880. Suitable for use in NC lathes with VDI fixing disc. Features: All tools are fully carburised and hardened. Surface hardness of 58 - 60HRC. Tensile strength above 1000N/mm2. Surfaces blued; seat, parallel shank and shoulder ground. Tools can be adjusted in-situ on radial and axial toolholders. Seat shim allows two tool sizes to be used with one toolholder. Ball regulator (bullseye) provides easy coolant control.

E2-1 Boring Bar Sleeves

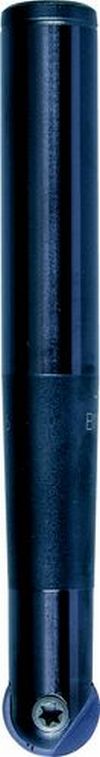

Dijet Mirror Ball Cutters

A range of cutter bodies and inserts for finishing the profiles of dies and moulds. Inserts are precision ground to ensure accurate workpiece form and high quality surface finish, which minimises subsequent polishing. The DZ coating provides for maximum tool life and edge durability when cutting at high speeds. Should be held in a roller lock type chuck.

For all dimensional and technical specifications please refer to our catalogue.

Taper Neck

Granlund HSS Size 1 Countersinks

Type TK. HSS. Tolerance x9 90.

Countersink TK with a diameter 50mm and larger are made with a driving lip. These sizes should be used in the appropriate type M holder.

For further specifications please refer to our catalogue.

Indexa-Seiki ER - Collet Chucks

The Indexa-Seiki ER Collet chuck is manufactured as part of Europe's most popular collet system. The collapsing collet design can be used for a range of diameters and maintains concentricity for drilling and milling. Long reach options are also available to give access into deep recesses. Balanced to 12,000rpm. Max Tir 0.010mm. (BT BT-MAS 403)



QC Quick Change

Indexa-Seiki VDI Toolholders

Manufactured to DIN 69880. Suitable for use in NC lathes with VDI fixing disc. Features: All tools are fully carburised and hardened. Surface hardness of 58 - 60HRC. Tensile strength above 1000N/mm2. Surfaces blued; seat, parallel shank and shoulder ground. Tools can be adjusted in-situ on radial and axial toolholders. Seat shim allows two tool sizes to be used with one toolholder. Ball regulator (bullseye) provides easy coolant control.

Rectangular Blanks - A1

Indexa-Seiki ER - Single Angle Collets

Collet Dimensions:
Capacity 1.0 - 7.0.
(D)11.5mm x (L)18.0mm.

ER11

Allied Maxcut Thread Mills

The MaxThread™ threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These product have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price. A helical flute design has been maintained across the MaxThread™ range to allow
for maximum production benefits and to negate the need for straight flute thread mills. A comprehensive range of thread forms and technical information further supports the programme.

Features and Benefits:
Helical flute which offers increased strength and rigidity when cutting forces are applied.
TiAlN coated for increased tool life over uncoated tools.
Extensive range of thread forms.
High quality for consistent predictable production.

UN Thread Mills
