Kennedy Endmills

Kennedy KC3 throwaway 3* flute endmills are manufactured HSS-Co 5% making them much tougher than HSS. This means that Kennedy endmills can be used at higher speeds and feeds which in turn gives greater productivity.

Kennedy KC3 endmills are available uncoated, TiN coated and TiCN coated.

TiN (Titanium nitride) provides a surface hardness in the region of 2300HV which offers improved wear resistance, tool life and productivity.

TiCN (Titanium Carbonitride) gives a surface hardness in the region of 3000-3500 HV, excellent wear resistance and good heat resistance. This coating is used for the same things as TiN but also for hard steels, stainless, cast iron, brass & bronze.

For all technical and dimensional specifications please refer to our catalogue.

*Except: 1mm cutters, 2mm and 1/16" ball nose cutters, all of which have two flutes.

KC3 Endmill Long Series 3* Flute Throwaway Cutter Weldon Shank HSS-Co 5% TiN Coated - Metric

Kennedy® Ball Nosed Slot Drills Plain Shank Carbide Micrograin

Offer a combination of advantages achieved with two and four flutes giving profile and peripheral milling capability in addition to slotting and plunging. Chatter is also significantly reduced. Centre cutting as standard. Manufactured to Ansi Standards.

For all dimensional and technical specifications please refer to our catalogue.

Long Series 3 Flute - Metric

For optimum performance and maximum swarf removal when plunging, slotting and routing in most materials including brass, aluminium, non-ferrous and other soft materials. Manufactured to ANSI Standards.
Metric Tolerances
Nominal Limits Of Tolerance
Diameter High Low
1 - 6 0.000 -0.050
7 - 25 0.000 -0.080
Long Series

HSS Plain Shank Dovetail Cutters (Single Angle Cutters)

Bright finish. Flute type: 30° Helix. Manufactured to BS 122: Part 4: 1980.

Regular Series Type 5321T - Inch

For all dimensional and technical specifications please refer to our catalogue.

SwissTech 2 Flute Slot Drills Weldon Shank HSS-Co 8%

Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 01 Short SDH-2WS HSS-Co 8%

Dimensions to DIN 327.

Kennedy® Milling Cutters Plain Shank Carbide Micrograin

2 Flute
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to Works Standards.

For all dimensional and technical specifications please refer to our catalogue.

Regular Series 2 Flute Slot Drills - Inch

SwissTech 2 Flute Slot Drills Plain Shank Q-Coat Carbide

Centre cutting. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 45 2 Flute Short SDC-2PS Carbide

Dimensions to DIN 6535 HA

SwissTech 2 Flute Slot Drills Threaded Shank HSS-Co 8%

Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 28 Short SDH-2TS HSS-Co 8%

Dimensions to DIN 327

Kennedy® Ball Nosed Slot Drills Plain Shank Carbide Micrograin

For maximum strength when milling harder materials where rapid swarf removal is not needed. 4 flute milling cutters have one of the strongest tooth structures available in solid cutters. Centre cutting as standard. Manufactured to ANSI Standards.

For all dimensional and technical specifications please refer to our catalogue.

Long Series - 4 Flute - Inch

For maximum strength when milling harder materials where rapid swarf removal is not needed. 4 flute milling cutters have one of the strongest tooth structures available in solid cutters. Centre cutting as standard. Manufactured to Ansi Standards.
Inch Tolerances
Nominal Limits Of Tolerance
Diameter High Low
1/16" - 1/4" 0.000 -0.002
17/64" - 1" 0.000 -0.003
Metric Tolerances
Nominal Limits Of Tolerance
Diameter High Low
1 - 6 0.000 -0.050
7 - 25 0.000 -0.080

Sherwood 2 Flute Ball Nose Slot Drills Threaded Shank HSS

Used for diesinking, slot milling and profile milling. Bright finish. Flute type: 30° helix. Manufactured to BS 122 : Part 4 : 1980.

For all dimensional and technical specifications please refer to our catalogue.

Long Series Type B230T - Inch

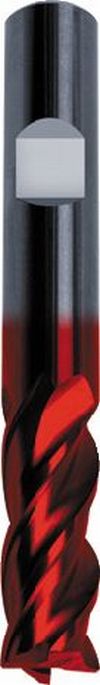

Guhring High Performance Unequal Helix End Mills Solid Carbide

Designed for general-purpose universal milling with a 35/38 unequal helix and Guhring's own unique Fire Coating for increased performance. Unique Fire Coating is applied in Guhring's own coating plants using the PVD process. All-around coating can achieve two to three times the performance of TiN, and considerably better than TiALN. Has excellent heat resistance as well high toughness, therefore it is well suited for interrupted cutting.

For all dimensional and technical specifications please refer to our catalogue.

Series 5535 4 Flute End Mills
