Kennedy® Protractor Type Depth & Angle Gauge

Manufactured from ground steel with graduations from 0° - 180° in both directions for fast and accurate measurements. When the rule is positioned to 90° on the protractor it then provides accurate measurements of depth. Satin chrome anti-glare finish with permanent black figures and graduations.

Spring Dividers

Manufactured from high quality polished steel. Ground finished points, a fine adjusting screw is mounted across the legs for setting the distance between the two points. A circular spring bow joins the legs, with a knurled extension attached for use when pivoting the dividers. Dividers are used for scribing arcs and circles, a light centre punch mark on the work keeps the pivot leg in the centre while marking.

Kennedy® Engineers' Steel Rules

Finest quality spring tempered rustless steel. Satin chrome. Anti-glare finish with permanent black figures and graduations. Extremely easy to read. EEC Class one accuracy: +/- 0.2mm full scale. Constant at 20°C.

Round End - Rigid Blade

Spring tempered rigid steel blades. 150mm/6" 19mm blade width. Other lengths 25mm blade width. With hanging hole.

Kennedy® Drill Gauges

Manufactured from hardened steel with a satin finish. An ideal way to quickly measure the diameter of drills and
steel wire.

Kennedy® Screw Pitch Gauges

Ideal for accurately measuring internal and external thread forms. Manufactured from hardened and polished steel, the blades are precision milled for optimum accuracy. Enclosed in a steel case.

Spring Dividers

Manufactured from high quality polished steel. Ground finished points, a fine adjusting screw is mounted across the legs for setting the distance between the two points. A circular spring bow joins the legs, with a knurled extension attached for use when pivoting the dividers. Dividers are used for scribing arcs and circles, a light centre punch mark on the work keeps the pivot leg in the centre while marking.

Kennedy® Engineers' Steel Rules

Finest quality spring tempered rustless steel. Satin chrome. Anti-glare finish with permanent black figures and graduations. Extremely easy to read. EEC Class one accuracy: +/- 0.2mm full scale. Constant at 20°C.

Round End - Rigid Blade

Spring tempered rigid steel blades. 150mm/6" 19mm blade width. Other lengths 25mm blade width. With hanging hole.

Kennedy® Engineers' Rule, Round End - Pocket Type

Spring tempered stainless steel blades. 13mm blade width with sliding pocket clip which can be used as a depth gauge slide. Reverse side is marked with 64th to mm conversion table. 12mm blade width. Can also be used as a depth gauge. Flexible. Round end. Rustless.
EEC Class one accuracy (+/-0.2mm at 20°C). Satin chrome anti glare finish. Permanent black figures and graduations. Hanging hole.

Spring Dividers

Manufactured from high quality polished steel. Ground finished points, a fine adjusting screw is mounted across the legs for setting the distance between the two points. A circular spring bow joins the legs, with a knurled extension attached for use when pivoting the dividers. Dividers are used for scribing arcs and circles, a light centre punch mark on the work keeps the pivot leg in the centre while marking.

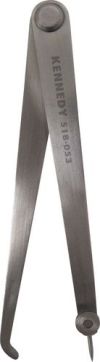

Firm Joint Calipers

Manufactured from high quality steel, with a polished finish. Consisting of two legs which are held together by a large nut and screw to provide a firm friction joint. Each Firm Joint Caliper has an adjustable ground point which can be retracted for storage and the other leg is angled at the tip. The legs can be reversed, so the tip turns inwards or outwards. Firm joint calipers are used for scribing arcs and parallel lines by using the edge of the workpiece as a guide, and are also used for measuring from the centre point of a component.

Adjustable Point
