产品 / 切削工具 / 数控刀具&附件
品牌
1BH-09,0 INSERT DRILL K20

1BH-09,0 INSERT DRILL K20

编号:GRA1513069A
●产品描述:
Granlund Size 1 Insert Drills

Type BH Carbide K20 Tol. h8 flute 25mm.

When combining insert drills with countersinks, the drill must break through the work piece before secondary cutting commences and must not be used for blind holes.

For all technical specifications please refer to our catalogue.



AR3026 VDI PARTING-OFF HOLDER

AR3026 VDI PARTING-OFF HOLDER

编号:IND1486080K
●产品描述:
Indexa-Seiki VDI Toolholders

Manufactured to DIN 69880. Suitable for use in NC lathes with VDI fixing disc. Features: All tools are fully carburised and hardened. Surface hardness of 58 - 60HRC. Tensile strength above 1000N/mm2. Surfaces blued; seat, parallel shank and shoulder ground. Tools can be adjusted in-situ on radial and axial toolholders. Seat shim allows two tool sizes to be used with one toolholder. Ball regulator (bullseye) provides easy coolant control.

AR3026 Parting-Off Holder

80mm XP-90C SHELL MILL

80mm XP-90C SHELL MILL

编号:IND1393960K
●产品描述:
Indexa-Seiki XP Range

A new generation of Indexa Seiki? 'XtraPlasma' indexable weldon end mills and shell mills with plasma ion coating and through coolant. A 90 approach angle for profiling, slotting and face milling. Plasma ion coating offers a longer tool life and greater hardness that is more resistant to wear.

80mm Shell Mill

25A03R032B25ED10 END MILL

25A03R032B25ED10 END MILL

编号:KML1392446A
●产品描述:
Kennametal Indexable End Mill

The Kennametal range of Mill-1-10 are a range of 3D-Pocket Milling & Plunging Cutters.

Typical Applications:
Circular contour milling ID & OD
Full Slotting
Face and square shoulder milling
Profile milling
Circular face milling
Helical interpolation ramping into full material
Full slotting trochoidal

Features:
Inserts with integrated wiper facet.
Perfect ramping up to 9.5 and true 90.
Balancing cutting load to minimise vibrations and reduce spindle power.

Benefits:
One insert type to reduce inventory costs.
Higher feed rates. Spindle protection. Less spindle power consumption.
Perfect performance with circular ramping into full material - can replace drilling.
Increased productivity and soft cutting action in contouring and full slotting.
Reduced machining time in roughing operations.
Excellent performance and increased tool life in finishing applications.

Mill-1-10 Indexable End Mill

A200753CT300 CARTRIDGE TYPE HEAD

A200753CT300 CARTRIDGE TYPE HEAD

编号:PNZ1776700K
●产品描述:
Pinzbohr Modular Boring System Heads

Simultaneous movement of both slide-blocks on rough boring heads. Inner pre-load device between body and slide block on finish boring heads. Override device on adjusting screw in rough boring heads. Few boring head components. Simple adjusting and locking mechanism. Setting diameter with boring head mounted in machine tool using micrometer or caliper. After setting to the required diameter it prevents slide block from moving while tightening lock screw. Prevents adjusting screw from stripping threads; very easy and fast to adjust. Precision machined components. Made from chrome nickel alloy tool steel. Modular components - simple yet secure coupling system. Large adjusting ranges on rough and finish boring heads. Rough and finish boring heads for many insert styles. High accuracy and repeatability. Very rugged - excellent durability. Components remain securely locked even under severe machining conditions.

75 and 90 Rough Boring and Finish Boring Heads:
Dual insert head design for heavy duty roughing. 12 different head sizes cover a diameter range from 24 to 500mm. Integral insert pocket design for head sizes 22 - 54. Insert cartridge design for head sizes 68 - 500. Heads and cartridges available for up to 5 different insert styles (MC.., CC.., CN.., TC.., WC..). Simultaneous adjustment of the slide blocks. Override device to prevent stripping of adjusting screw. Micrometer adjustment on large boring heads, with 0.01mm increments. Cartridges have own radial adjusting screw for individual setting of cartridges. Change to different lead angle or insert style by simply exchanging cartridges.

Cartridge Design for Heads Size 68 ? 500mm:
Cartridges available for 5 different insert styles (MC.., CC.., CN.., TC.., WC..) Cartridges available with 75 and 90 lead angle, equipped with a radial adjusting screw for setting centrality or radial stagger. Available in pairs for symmetric or axial staggered insert set-up.

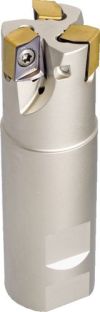

H490 E90AX D32-4-C32-09 HELIDO ENDMILL

H490 E90AX D32-4-C32-09 HELIDO ENDMILL

编号:ISC1394537C
●产品描述:
Iscar Helido Indexable Endmills and Facemills

The new HELIDO H490 ANKX rectangular inserts have 4 helical right-hand positive cutting edges. They were designed in cutting edge lengths of 9, 12 and 17 mm. Insert construction is very thick and strong; clamped into a dovetail inclined pocket which provides a very rigid clamping and has a wiper which leaves an excellent surface finish.

Due to its strong construction, unique chip deflector with positive cutting angles and excellent grade combinations, this new family features high durability, low cutting forces and long tool life. Our most advanced SUMO TEC grades ensure excellent performance and reliability.

The new HELIDO tools can be used for machining steel, stainless steel and cast iron at very high machining parameters. HELIDO"s state-of-the-art of milling insert design, enables excellent performance and extremely high productivity.

H490 - A new family of double-sided inserts with 4 helical cutting edges.

For further specification on this product please see refer to our catalogue page.

H490 E90AX...-09 Indexable End Mills

End Mills with double-sided inserts, diameter range 16-40mm.
454T-62 62.00mm CPM-T15 CO TIN INSERT

454T-62 62.00mm CPM-T15 CO TIN INSERT

编号:AME1562455Q
●产品描述:
Allied Maxcut Series 4 Inserts

For all dimensional specifications please refer to our catalogue.

GEN2 T-A HSS Super Cobalt TiN Coated

16mm XP-90C WELDON END MILL

16mm XP-90C WELDON END MILL

编号:IND1394860K
●产品描述:
XP-90C Weldon End Mills

Positive 90 approach milling cutter, using size 10/16 inserts allowing depth passes and high feed per teeth. Torx screw allows for good chip ecacuation. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard.

XP-90C End Mills For AP_T 10 Inserts

SEKR 1203AFTN INSERT GRADE QP25C

SEKR 1203AFTN INSERT GRADE QP25C

编号:YML1204627W
●产品描述:
SEKR

QP25C (ISO P10-P35) CVD Coated. Milling grade for Steels and some Stainless Steels.

1203

To suit: Indexa-Seiki Face Hog Milling Cutter. Hitachi 45° Face Mill.
1W-10,5 COUNTERBORE HSS

1W-10,5 COUNTERBORE HSS

编号:GRA1514510F
●产品描述:
Granlund HSS Size 1 Counterbores

Type W. HSS. Tolerence P8.

Counterbores W with a diameter of 50mm and larger are all made with a driving lip. These sizes should be used in the appropriate type M toolholder.

For further specifications please refer to our catalogue.
