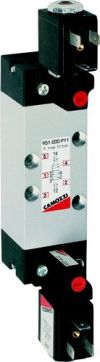

Electro Pneumatically Operated Valves

Type 358
Number of ports/positions: 5/2.
Port size: G1/8?.
Actuation types: 015 = single solenoid,
spring return.
E15 = single solenoid,
external servo-command.
Flow rate: 700 Nl/min.
Solenoid interface: mech. sol. 22 x 22.

Type 358

FR Boxed Set

Filter regulator with bracket and gauge.
Supplied partially assembled complete with bracket and front mounting pressure gauge. Compact design. Great modularity. Easy maintenance. Enammelled finish.

Choice of ports sizes: G1/4, G3/8 or G1/2.
Operating temperature: 0C to 50C at 10 bar.
Filration element: 25um.

Series 32 Compact Magnetic Cylinders

Double Acting.
Standard ISO 21287.
Stainless steel rod.
Anodized aluminium extrusion.
Cast aluminium End Blocks.
Double Acting Stroke min-max Ø 20-25 : 510-500mm, Ø 20 : 10-500mm, Ø 25 : 10-500mm.
Bores: Ø 16, 20, 25.
Operating temperature: 0°C to +80°C (with dry air -20°C to +80°C).
Operating Pressure:
1 to 10 bar (Double-acting).
2 to 10 bar (Single-acting).
Speed: 10 to 1000mm/sec (no load).

Series 3 Electropneumatically Operated Valves

Series 3 solenoid valves are available in two main versions: electropneumatically actuated with mechanical spring return, electropneumatically actuated with external and internal air pressure supply.
General data:
Construction: spool - type
Valve group: 2 x 3/2 - 3/2 - 5/2 - 5/3 way C.C. C.O. C.P.
Materials: AL body, stainless steel spool, NBR seals
Ports: G1/8 - G1/4
Installation in any position
Operating temperature: 0 - 60C
(with dry air at -20C)

Series 32 Compact Magnetic Cylinders

Double Acting.
Standard ISO 21287.
Stainless steel rod.
Anodized aluminium extrusion.
Cast aluminium End Blocks.
Double Acting Stroke min-max Ø 20-25 : 510-500mm, Ø 20 : 10-500mm, Ø 25 : 10-500mm.
Bores: Ø 16, 20, 25.
Operating temperature: 0°C to +80°C (with dry air -20°C to +80°C).
Operating Pressure:
1 to 10 bar (Double-acting).
2 to 10 bar (Single-acting).
Speed: 10 to 1000mm/sec (no load).

Manually Operated Valves

Series: 3
Function: 5/2
Port: 1/8
Actuation - Return: Lever Lever

Manually Operated Valve - Lever Lever

Series 61 Aluminium Profile Cylinders

Double Acting.
Standard DIN/ISO 15552.
Stainless steel piston rod.
Anodised aluminium extrusion cylinder barrel.
Cast aluminium End Blocks.
Stroke min-max lengths: 10-1000mm.
Bore sizes: Ø 32, 40, 50, 63, 80, 100, 125mm.
Operating temperature: 0°C to +80°C (with dry air -20°C to +80°C).
Operating Pressure: 1 to 10 bar.
Speed: 10 to 1000mm/sec (no load).
Connections: Ø 32 – 1/8”, Ø 40, 50 – ¼”, Ø 63, 80 –3/8”, Ø 100, 125 – 1/2”.

Series 61 Aluminium Profile Cylinders

Double Acting.
Standard DIN/ISO 15552.
Stainless steel piston rod.
Anodised aluminium extrusion cylinder barrel.
Cast aluminium End Blocks.
Stroke min-max lengths: 10-1000mm.
Bore sizes: Ø 32, 40, 50, 63, 80, 100, 125mm.
Operating temperature: 0°C to +80°C (with dry air -20°C to +80°C).
Operating Pressure: 1 to 10 bar.
Speed: 10 to 1000mm/sec (no load).
Connections: Ø 32 – 1/8”, Ø 40, 50 – ¼”, Ø 63, 80 –3/8”, Ø 100, 125 – 1/2”.

Series MC

The filter regulators Series MC are available with ports G1/4, G3/8 and G1/2. They combine the features of the filters and regulators and have smaller overall dimensions than the two separate components.

General Data
Construction compact modular with filtering element in HDPE diaphragm type
Materials: zama, NBR, technopolymer.
Ports: G1/4 G3/8 G1/2.
Condensate capacity cm: 28, 72, 72.
Weight. 0.443 0.948 0.928kg.
Pressure gauge ports: G1/8.
Mounting: vertical in-line or wall-mounting.
Operating temperature: 0C to 50C at 10 bar.
Porosity of filtering element: 25um standard - 5um upon request.
Draining of condensate: manual - semi-automatic standard.
Finishing: enamelled.
Inlet pressure with standard drain and protected depressurisation: 0.3 - 16 bar with depressurisation, 0.3 - 10 bar with automatic drain, 1.5 - 12 bar for G3/8 and G1/2.



Size: G3/8-G1/2.
Ports: G3/8.
Drain type: manual semi-automatic, self-relieving.
Working pressure: 0,5 10.

Pneumatically Operated Valves

Series: 3
Function: 3/2
Port: 1/4
Actuation - Return: Pilot Pilot

Pneumatically Operated Valve - Pilot Pilot
Series: 3
Function: 3/2
Port: 1/4
Actuation - Return: Pilot Pilot
