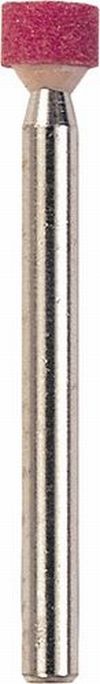

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'W' Shape. Shank Dia. 6mm

Shape W219. Grade: RA46. Diameter: 25mm. Length: 19mm. Max. rpm: 35,000. Weight per 10: 40g.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'W' Shape. Shank Dia. 3mm

Shape W151. Grade: RA120. Diameter: 5mm. Length: 3mm. Max. rpm: 100,000. Weight per 10: 20g.

Quantum Vitrified Bond Mounted Points

Quantum - Ceramic Abrasive Grain
Ideal for high volume foundry operations. Minimal loading and heat build up. Up to 33% longer abrasive life when compared to other ceramic abrasive products with 30% higher metal removal rates. Optimised for all low, medium and high force applications including grinding Inconel and similar alloy turbine blade components.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'B' Shape. Shank Diameter 3mm

Shape B83. Grade: RA120. Diameter: 10mm. Length: 5mm. Max. rpm: 87,000. Weight per 10: 30g.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'W' Shape. Shank Dia. 6mm

Shape W171. Grade: RA60. Diameter: 8mm. Length: 19mm. Max. rpm: 36,000. Weight per 10: 100g.

Quantum Vitrified Bond Mounted Points

Quantum - Ceramic Abrasive Grain
Ideal for high volume foundry operations. Minimal loading and heat build up. Up to 33% longer abrasive life when compared to other ceramic abrasive products with 30% higher metal removal rates. Optimised for all low, medium and high force applications including grinding Inconel and similar alloy turbine blade components.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'B' Shape. Shank Diameter 3mm

Shape B91. Grade: RA120. Diameter: 13mm. Length: 16mm. Max. rpm: 34,000. Weight per 10: 50g.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'W' Shape. Shank Dia. 6mm

Shape W216. Grade: RA46. Diameter: 22mm. Length: 3mm. Max. rpm: 43,000. Weight per 10: 60g.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'B' Shape. Shank Diameter 3mm

Shape B44. Grade: RA100. Diameter: 6mm. Length: 10mm. Max. rpm: 68,000. Weight per 10: 150g.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'B' Shape. Shank Diameter 3mm

Shape B61. Grade: RA80. Diameter: 19mm. Length: 8mm. Max. rpm: 38,000. Weight per 10: 70g.
