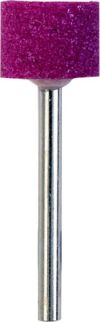

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'W' Shape. Shank Dia. 6mm

Shape W197. Grade: RA60. Diameter: 16mm. Length: 50mm. Max. rpm: 21,000. Weight per 10: 350g.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'A' Shape. Shank Diameter 6mm

Shape A23. Grade: RA60. Diameter: 19mm. Length: 25mm. Max. rpm: 39,000. Weight per 10: 220g.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'B' Shape. Shank Diameter 3mm

Shape B63. Grade: RA100. Diameter: 6mm. Length: 5mm. Max. rpm: 92,000. Weight per 10: 20g.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'W' Shape. Shank Dia. 3mm

Shape W184. Grade: RA80. Diameter: 13mm. Length: 10mm. Max. rpm: 70,000. Weight per 10: 50g.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'B' Shape. Shank Diameter 3mm

Shape B82. Grade: RA120. Diameter: 13mm. Length: 6mm. Max. rpm: 76,000. Weight per 10: 30g.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'B' Shape. Shank Diameter 3mm

Shape B135. Grade: RA120. Diameter: 6mm. Length: 13mm. Max. rpm: 60,000. Weight per 10: 30g.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'B' Shape. Shank Diameter 3mm

Shape B101. Grade: RA100. Diameter: 16mm. Length: 18mm. Max. rpm: 33,000. Weight per 10: 70g.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'W' Shape. Shank Dia. 6mm

Shape W220. Grade: RA46. Diameter: 25mm. Length: 25mm. Max. rpm: 25,000. Weight per 10: 100g.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'B' Shape. Shank Diameter 3mm

Shape B113. Grade: RA80. Diameter: 6mm. Length: 6mm. Max. rpm: 70,000. Weight per 10: 30g.

Kennedy® Mounted Points and Wheels

Suitable for portable die and straight hand grinders. All points are aluminium oxide with "rubenite" as standard for all general purpose grinding and deburring on steels and most metals. Silicon carbide grade (suitable for stone/non-ferrous grinding) available on request. Shank diameters are metric as listed below with inch sizes available on request. Maximum speeds are quoted assuming that collet to back of point does not exceed 12.7mm (1/2") and are for guidance only.

'W' Shape. Shank Dia. 6mm

Shape W195. Grade: RA60. Diameter: 16mm. Length: 19mm. Max. rpm: 46,000. Weight per 10: 190g.
