Kennedy® Magnetic Vee Block

Ideal for holding cylindrical workpieces for grinding application. The adhesion will simultaneously hold the workpiece and vee-block to any flat ferrous surface. Dimensions (W x L x H): 70 x 102 x 95mm.

Kennedy® Deep Pot Magnets

North polarity in centre separated from opposing pole by a continuous slot. Ideally suited for gripping applications. Supplied with M6 x 1 threaded bore fixing hole and keeper. Can be used in temperatures up to 550C.

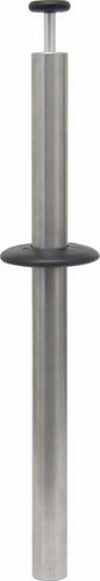

Kennedy® Magnetic Pick-Up Sweeper

High power magnet for easy pick up and release of metal objects. Can be used for scrap and ferrous debris. Permanent magnet, never needs to be re-magnetized. Lightweight. Chrome plated and corrosion resistant. Effective working length 140cm.

Kennedy® Shallow Pot Magnets

Manufactured from ceramic ferrite material set in a mild steel shell. Suitable for holding machine tool accessories with M6 threads or building into jigs. Supplied with J bolt for easy release.

Kennedy® Magnet Set

2 each: 12.7mm button. 1 each: 17.5mm deep button, 20mm button and 20mm pot. Button magnets can be used in temperatures up to 550C, Pot magnets to 220C.

Kennedy® Shallow Pot Magnets

Manufactured from ceramic ferrite material set in a mild steel shell. Suitable for holding machine tool accessories with M6 threads or building into jigs. Supplied with J bolt for easy release.

Kennedy® Magnetic Tray

For holding metal items such as nuts, bolts, washers etc.

Rectangular Tray

For holding larger items.

Kennedy® Power Magnets

A square horseshoe magnet. Supplied with plain fixing holes. kg pull (max): 25mm - 4.5, 30mm - 9.0 & 40mm - 11.8.

Kennedy® Shallow Pot Magnets

North polarity in centre separated from opposing pole by a continuous slot. For use in areas of restricted height. Supplied with plain bore fixing hole and keeper. Permanently magnetic. Can be used in temperatures up to 550C.

Kennedy® Ferrite Channel Magnet

Designed to give maximum grip within channels or slots. Able to grip non-uniform workpieces.
Dimensions: (L)130 x (W)30 x (H)13mm.
Weight: 250g.
