SwissTech 3 Flute Slot Drills Weldon Shank HSS-Co 8%

Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 07 Long SDH-3WL HSS-Co 8%

Dimensions to DIN 844.

SwissTech 2 Flute Slot Drills Weldon Shank HSS-Co 8%

Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 01 Short SDH-2WS HSS-Co 8%

Dimensions to DIN 327.

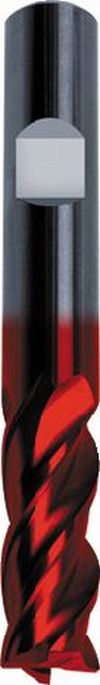

Guhring High Performance Unequal Helix End Mills Solid Carbide

Designed for general-purpose universal milling with a 35/38 unequal helix and Guhring's own unique Fire Coating for increased performance. Unique Fire Coating is applied in Guhring's own coating plants using the PVD process. All-around coating can achieve two to three times the performance of TiN, and considerably better than TiALN. Has excellent heat resistance as well high toughness, therefore it is well suited for interrupted cutting.

For all dimensional and technical specifications please refer to our catalogue.

Series 5535 4 Flute End Mills

Sherwood 2 Flute Slot Drills Threaded Shank HSS

Used for milling keyways and slots in one unit. Bright finish. Flute type: 30° Helix. Manufactured to BS 122: Part 4: 1980.

For all dimensional and technical specifications please refer to our catalogue.

Short Series S210T - Metric

Sherwood 2 Flute Ball Nose Slot Drills Threaded Shank HSS

Used for diesinking, slot milling and profile milling. Bright finish. Flute type: 30° helix. Manufactured to BS 122 : Part 4 : 1980.

For all dimensional and technical specifications please refer to our catalogue.

Long Series Type B230T - Inch

OSG Endmills Carbide

OSG WX-G-EDSS short series endmills are manufactured from high performance micro grain carbide with an Ultra WX coating (multi layered composite TiALN).

Centre cutting.
Cutting length: 1.5 x D.

The Ultra WX coating has been developed to improve performance in a wide range of materials including non-ferrous materials, mild steels, and refined steels This stable performance remains consistent in both wet and dry applications and is intended for a wide range of cutting conditions, from low speed/reduced cutting force applications to high speed/high cutting force applications.

For all technical and dimensional specifications please refer to our catalogue.

WX-G-EDSS Series 2 Flute Endmill 35 Helix Plain Shank Carbide

SwissTech 2 Flute Ball Nosed Slot Drills Plain Shank Q-Coat Carbide

Centre Cutting. To Manufacturers Standards. Cutting diameter to e8, Shank diameter to h6. ?Q-Coat? Coating has been specifically developed to give carbide cutters the ?edge? when faced with severe machining conditions. Materials up to 66 HRC. Dry cutting. Die and Mould machining. Reduced coolant usage and disposal. Up to 100% longer cutter life. Reduced manufacturing costs. A multi-layer coating capable of operating at higher speed and feed. Excellent oxidisation resistance. High speed machining. Surface hardness 3300HV. Surface coefficient against steel 0.25. Thickness of coating 305um. Maximum working temperature 850. Re-coating service also available.

For all technical and dimensional specifications please refer to our catalogue.

Series 78 Regular SBQ-2PR Carbide Q-Coat

OSG Endmills Carbide

OSG WX-EMS short series 4 flute endmills are manufactured from high performance micro grain carbide with an Ultra WX coating (multi layered composite TiALN).

Centre cutting.
Cutting length: 1.5 x D.

The Ultra WX coating has been developed to improve performance in a wide range of materials including nonferrous materials, mild steels, and refined steels This stable performance remains consistent in both wet and dry applications and is intended for a wide range of cutting conditions, from low speed/reduced cutting force applications to high speed/high cutting force applications.

For all technical and dimensional specifications please refer to our catalogue.

WX-EMS Series 4 Flute Endmill 30 Helix Plain Shank Carbide

Swisstech Fine Pitch Ripper Cutters Weldon Shank HSS-E PM TiALN Coated

Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to js12. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 25 Regular RFL-4WR TiALN

Dimensions to DIN 844.

Sherwood 2 Flute Ball Nose Slot Drills Threaded Shank HSS

Used for diesinking, slot milling and profile milling. Bright finish. Flute type: 30° helix. Manufactured to BS 122 : Part 4 : 1980.

For all dimensional and technical specifications please refer to our catalogue.

Long Series Type B230T - Metric
