Kennedy Endmills

Kennedy KC3 throwaway 3* flute endmills are manufactured HSS-Co 5% making them much tougher than HSS. This means that Kennedy endmills can be used at higher speeds and feeds which in turn gives greater productivity.

Kennedy KC3 endmills are available uncoated, TiN coated and TiCN coated.

TiN (Titanium nitride) provides a surface hardness in the region of 2300HV which offers improved wear resistance, tool life and productivity.

TiCN (Titanium Carbonitride) gives a surface hardness in the region of 3000-3500 HV, excellent wear resistance and good heat resistance. This coating is used for the same things as TiN but also for hard steels, stainless, cast iron, brass & bronze.

For all technical and dimensional specifications please refer to our catalogue.

*Except: 1mm cutters, 2mm and 1/16" ball nose cutters, all of which have two flutes.

KC3 Endmill Long Series 3* Flute Throwaway Cutter Weldon Shank HSS-Co 5% - Inch

Sherwood 2 Flute Slot Drills Threaded Shank HSS-Co 5%

Centre cutting, used for profile milling, milling keyways and producing open slots. Surface treatment: bright finish. Flute type: 30° Helix. Manufactured to BS 122: Part 4: 1980.

Long Series - Metric

SwissTech 3 Flute Slot Drills Weldon Shank HSS-Co 8%

Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 07 Long SDN-3WL TiCN Coated

Dimensions to DIN 844.

Sherwood 2 Flute Ball Nose Slot Drills Threaded Shank HSS

Used for diesinking, slot milling and profile milling. Bright finish. Flute type: 30° helix. Manufactured to BS 122 : Part 4 : 1980.

For all dimensional and technical specifications please refer to our catalogue.

Short Series Type B210T - Inch

HSS Plain Shank Dovetail Cutters (Single Angle Cutters)

Bright finish. Flute type: 30° Helix. Manufactured to BS 122: Part 4: 1980.

45° Corner Angle - Metric (Form C)

For all dimensional and technical specifications please refer to our catalogue.

Swiss+Tech Carbide Cutters

SwissTech carbide cutters are specifically engineered to be used in CNC machine centres. The rigidity and integrity of the machine tool is paramount to the performance of this type of cutter. Carbide cutters are used mainly at high speed and feed rates. The increased temperatures associated with cutting at such high rates are absorbed by the carbide, which will retain its strength and hardness. SwissTech carbide cutters can be used across a range of materials.

3 Flute Slot Drills (Set of 6)

Dimensions to DIN 844. Cutting diameter to js12. Shank diameter to h6.

Contents: 3, 4, 5, 6, 8 and 10mm.

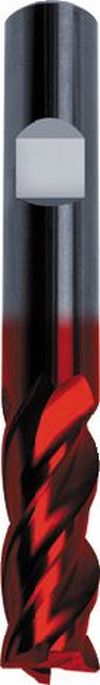

Guhring High Performance Unequal Helix End Mills Solid Carbide

Designed for general-purpose universal milling with a 35/38 unequal helix and Guhring's own unique Fire Coating for increased performance. Unique Fire Coating is applied in Guhring's own coating plants using the PVD process. All-around coating can achieve two to three times the performance of TiN, and considerably better than TiALN. Has excellent heat resistance as well high toughness, therefore it is well suited for interrupted cutting.

For all dimensional and technical specifications please refer to our catalogue.

Series 5535 4 Flute End Mills

Brooke Cutting Tools Staggered Tooth Side and Face Cutters HSS

Designed for deep slot operations in steel and in most soft materials. They have alternative right and left hand spiral teeth which provide ample chip clearance for fast stock removal.

For all dimensional specifications please refer to our catalogue.

SwissTech 2 Flute Ball Nose Slot Drill Plain Shank Q-Coat Carbide

Centre Cutting. To Manufacturers Standards. Cutting diameter to h10, Shank diameter to h6. ?Q-Coat? Coating has been specifically developed to give carbide cutters the ?edge? when faced with severe machining conditions. Materials up to 66 HRC. Dry cutting. Die and Mould machining. Reduced coolant usage and disposal. Up to 100% longer cutter life. Reduced manufacturing costs. A multi-layer coating capable of operating at higher speed and feed. Excellent oxidisation resistance. High speed machining. Surface hardness 3300HV. Surface coefficient against steel 0.25. Thickness of coating 305um. Maximum working temperature 850. Re-coating service also available.

For all technical and dimensional specifications please refer to our catalogue.

Series 75
Regular Neck

Sherwood® Milling Cutters Plain Shank Carbide Micrograin

For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to USCTi Standards. Available in 2 flute for maximum swarf clearance, 4 flute for maximum rigidity and 3 flute offers a combination of the advantages achieved with 2 and 4.

For all dimensional and technical specifications please refer to our catalogue.

Kennedy® Regular Series 2 Flute Slot Drills
