SwissTech 2 Flute Slot Drills Threaded Shank HSS-Co 8%

Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 28 Short SDH-2TS HSS-Co 8%

Dimensions to DIN 327

Sherwood 2 Flute Ball Nose Slot Drills Threaded Shank HSS

Used for diesinking, slot milling and profile milling. Bright finish. Flute type: 30° helix. Manufactured to BS 122 : Part 4 : 1980.

For all dimensional and technical specifications please refer to our catalogue.

Long Series Type B230T - Inch

Sherwood T-Slot Cutters Threaded Shank HSS

Used for machining T-slots on slide tables, fixtures etc., to DIN 650. For milling structural, carburized and heat treated steel up to 900N/mm2. Sizes up to 16mm and 1/2" have 6 flutes and 18mm and 5/8" upwards have 8 flutes. Made to DIN 851. Shank to DIN 1835/D. Flute form 12 RH/LH.

For all dimensional specifications please refer to our catalogue.

Inch sizes

Iscar Carbide Endmills

Iscar FINISHRED Solid Carbide Endmills.
2 Applications in 1 Solid Carbide Endmill:
The EFS.. B44 endmill features 4 flutes with a 45 helix,
two serrated flutes and two continuous flutes.
The tool is fully effective and enables running at rough machining
parameters, resulting in finish surface quality.
Unique tool design reduces vibration at high load applications.
The tool produces short and long chips simultaneously. This chip mixture is
evacuated more easily than each individual chip type, which is an excellent
solution for slotting and cavity milling applications.
One tool change and set up time can be eliminated.
A single tool replaces the roughing and finishing endmills, dramatically
reducing cycle time and increasing productivity.
Extra tool position is gained on the machine.
Eliminates the need to keep a large amount of stock.
4 flutes: 2 serrated plus 2 continuous flutes.
Excellent performance and tool life.
Suitable for all types of steel. Excellent performance in machining titanium,
inconel, stainless steel and high temperature alloys.

Finishred FS-B44 4 Flute End Mill

SwissTech 2 Flute Slot Drills Weldon Shank HSS-Co 8%

Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 03 Long SDH-2WL HSS-Co 8%

Dimensions to DIN 844.

Sherwood 2 Flute Slot Drills Threaded Shank HSS

Used for milling keyways and slots in one unit. Bright finish. Flute type: 30° Helix. Manufactured to BS 122: Part 4: 1980.

For all dimensional and technical specifications please refer to our catalogue.

Short Series S210T - Inch

Sherwood Multi Flute End Mills Threaded Shank HSS-Co

Used for profile milling and producing open slots. Bright finish. Flute Type: 30° Helix. Manufactured to BS 122 : Part 4 : 1980.

For all dimensional and technical specifications please refer to our catalogue.

Regular Series Type E411T - Metric

OSG Endmills Carbide

OSG WX-EBD series ball nose endmills have a long plain shank and an extended neck for hardened material. High performance micro grain carbide with Ultra WX coating (multi layered composite TiALN).

For use on material up to 50HRC.
For ultra high-speed machine centres.
For deep slotting. Cutting length: 0.8 x D.

The Ultra WX coating has been developed to improve performance in a wide range of materials including nonferrous materials, mild steels, and refined steels This stable performance remains consistent in both wet and dry applications and is intended for a wide range of cutting conditions, from low speed/reduced cutting force applications to high speed/high cutting force applications.

For all technical and dimensional specifications please refer to our catalogue.

WX-EBD Series 2 Flute Ball Nose Endmill Plain Long Shank Carbide

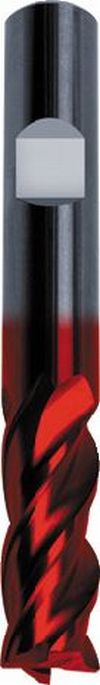

Guhring High Performance Unequal Helix End Mills Solid Carbide

Designed for general-purpose universal milling with a 35/38 unequal helix and Guhring's own unique Fire Coating for increased performance. Unique Fire Coating is applied in Guhring's own coating plants using the PVD process. All-around coating can achieve two to three times the performance of TiN, and considerably better than TiALN. Has excellent heat resistance as well high toughness, therefore it is well suited for interrupted cutting.

For all dimensional and technical specifications please refer to our catalogue.

Series 5535 4 Flute End Mills

SwissTech High Helix End Mills Weldon Shank HSS-E PM TiALN Coated

Centre cutting. Shank to DIN 1835B. Cutting diameter to js12. Shank diameter to h6. The combination of HSS-E PM and TiALN provides a cutter that is ideally suited to dry and semi-dry machining of materials up to 45 HRC, stainless steels and Aerospace alloys.

For all technical and dimensional specifications, please refer to our catalogue.

Series 92 Long EHP-4WL PM Coated
