Swiss+Tech 2 Flute Slot Drills Threaded Shank HSS-Co 8%

Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 28 Short SDN-2TS TiCN Coated

Dimensions to DIN 327

Swisstech Fine Pitch Ripper Cutters Weldon Shank HSS-E PM TiALN Coated

Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to js12. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 25 Regular RFN-4WR TiCN Coated

Dimensions to DIN 844.

Sherwood® Milling Cutters Plain Shank Carbide Micrograin

For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to USCTi Standards. Available in 2 flute for maximum swarf clearance, 4 flute for maximum rigidity and 3 flute offers a combination of the advantages achieved with 2 and 4.

For all dimensional and technical specifications please refer to our catalogue.

Regular Series 3 Flute Slot Drills

HSS Plain Shank Woodruff Cutters

12mm/1/2" shank
Produces closed slots for woodruff keys to DIN 6888. For milling structural, carburizing and heat treated steel up to 900N/mm2. Manufactured to BS 122 : Part 4 : 1980. Made to DIN 850.

Metric

SwissTech 4 & 6 Flute End Mills Threaded Shank HSS-Co 8%

Centre cutting. Weldon shank to DIN 1835B.
Shank cutting diameter to plus0.04 -0.0.

Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 36 Regular EML-4TR TiALN Coated

Dimensions to DIN 844.

SwissTech 3 Flute Slot Drills Weldon Shank HSS-Co 8%

Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 07 Long SDN-3WL TiCN Coated

Dimensions to DIN 844.

SwissTech 2 Flute Long Reach Ball Nose Slot Drills Plain Shank Q-Coat Carbide

Centre Cutting. To Manufacturers Standards. Cutting diameter to e8, Shank diameter to h6. 'Q-Coat' Coating has been specifically developed to give carbide cutters the 'edge' when faced with severe machining conditions. Materials up to 66 HRC. Dry cutting. Die and Mould machining. Reduced coolant usage and disposal. Up to 100% longer cutter life. Reduced manufacturing costs. A multi-layer coating capable of operating at higher speed and feed. Excellent oxidisation resistance. High speed machining. Surface hardness 3300HV. Surface coefficient against steel 0.25. Thickness of coating 305um. Maximum working temperature 850. Re-coating service also available.

For all technical and dimensional specifications please refer to our catalogue.

Series 73
Long Reach

Guhring High Performance Unequal Helix Carbide Milling Cutters

Up to 60% higher feed rates.
Longer tool life.
Vibration free machining.
Suitable for roughing and finishing.
Increased surface quality.
Made to DIN 6527.

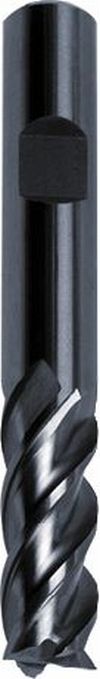

4 Flute Weldon Shank End Mill 40°/42°
Bright finish. Uncoated.
Suitable for aluminium and soft materials.
Sizes: 6, 8, 10, 12, 16 and 20mm.

Sherwood T-Slot Cutters Threaded Shank HSS

Used for machining T-slots on slide tables, fixtures etc., to DIN 650. For milling structural, carburized and heat treated steel up to 900N/mm2. Sizes up to 16mm and 1/2" have 6 flutes and 18mm and 5/8" upwards have 8 flutes. Made to DIN 851. Shank to DIN 1835/D. Flute form 12 RH/LH.

For all dimensional specifications please refer to our catalogue.

Metric sizes

Swisstech 3 Flute Slot Drills Threaded Shank HSS-Co 8%

Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 32 Short SDH-3TS HSS-Co 8%

Dimensions to DIN 327.
