SwissTech 2 Flute Ball Nosed Slot Drills Threaded Shank HSS-Co 8%

Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 39 Short SBL-2TS TiALN Coated

Dimensions to DIN 327.

Sherwood 2 Flute Slot Drills Threaded Shank HSS-Co 5%

Centre cutting, used for profile milling, milling keyways and producing open slots. Surface treatment: bright finish. Flute type: 30° Helix. Manufactured to BS 122: Part 4: 1980.

Short Series - Metric

HSS Plain Shank Dovetail Cutters (Single Angle Cutters)

Bright finish. Flute type: 30° Helix. Manufactured to BS 122: Part 4: 1980.

45° Corner Angle - Metric (Form C)

For all dimensional and technical specifications please refer to our catalogue.

Sherwood HSS Plain Shank Corner Rounding Cutters

Designed to produce convex corner radii. For milling structural, carburising and heat treated steel up to 900N/mm2.
Manufactured to works standards.
5° RH Flutes.
Bright finish, straight helix.
Radii tolerance: ± 0.005”.

Metric

HSS-Co 8% Cobalt Long Series Milling Cutters 2 Flute

Centre cutting, used for profile milling, milling keyways and producing open slots. Surface treatment: bright finish.
Flute type: 30° Helix. Overall dimensions to DIN 844. Plain shank to DIN 1835A.

Long Series

SwissTech 2 Flute Ball Nosed Slot Drills Plain Shank Q-Coat Carbide

Centre Cutting. To Manufacturers Standards. Cutting diameter to e8, Shank diameter to h6. ?Q-Coat? Coating has been specifically developed to give carbide cutters the ?edge? when faced with severe machining conditions. Materials up to 66 HRC. Dry cutting. Die and Mould machining. Reduced coolant usage and disposal. Up to 100% longer cutter life. Reduced manufacturing costs. A multi-layer coating capable of operating at higher speed and feed. Excellent oxidisation resistance. High speed machining. Surface hardness 3300HV. Surface coefficient against steel 0.25. Thickness of coating 305um. Maximum working temperature 850. Re-coating service also available.

For all technical and dimensional specifications please refer to our catalogue.

Series 78 Regular SBQ-2PR Carbide Q-Coat

Swisstech Fine Pitch Ripper Cutters Weldon Shank HSS-E PM TiALN Coated

Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to js12. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 25 Regular RFH-4WR HSS-Co 8%

Dimensions to DIN 844.

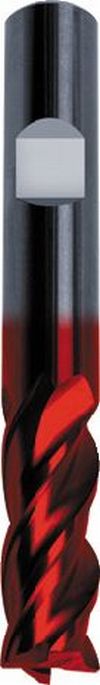

Guhring High Performance Unequal Helix End Mills Solid Carbide

Designed for general-purpose universal milling with a 35/38 unequal helix and Guhring's own unique Fire Coating for increased performance. Unique Fire Coating is applied in Guhring's own coating plants using the PVD process. All-around coating can achieve two to three times the performance of TiN, and considerably better than TiALN. Has excellent heat resistance as well high toughness, therefore it is well suited for interrupted cutting.

For all dimensional and technical specifications please refer to our catalogue.

Series 5535 4 Flute End Mills

SwissTech 4 & 6 Flute End Mills Weldon Shank HSS-Co 8%

Centre cutting. Weldon shank to DIN 1835B.
Shank cutting diameter:
3-6mm to plus0.04 -0.0.
8-20mm to plus0.05 -0.0.

Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 09 Regular EML-6WR TiALN Coated

Dimensions to DIN 844.

HSS-Co. 8% Plain Shank Milling Cutter 4 Flute

Centre cutting, used for profile milling, milling keyways and producing open slots.
Bright finish. Flute type: 30° helix.
Overall dimensions to DIN 844.
Plain shank to DIN 1835A.

Metric Tolerances
Nominal Dia. Limits of Tolerance
Up to 38mm 0.0630 -0.0130
Above 38mm 0.1250 -0.0000

Regular Length
