Sherwood Multi Flute End Mills Threaded Shank HSS-Co

Used for profile milling and producing open slots. Bright finish. Flute Type: 30° Helix. Manufactured to BS 122 : Part 4 : 1980.

For all dimensional and technical specifications please refer to our catalogue.

Regular Series Type E411T - Metric

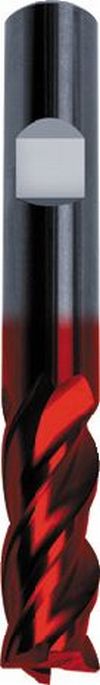

Guhring High Performance Unequal Helix End Mills Solid Carbide

Designed for general-purpose universal milling with a 35/38 unequal helix and Guhring's own unique Fire Coating for increased performance. Unique Fire Coating is applied in Guhring's own coating plants using the PVD process. All-around coating can achieve two to three times the performance of TiN, and considerably better than TiALN. Has excellent heat resistance as well high toughness, therefore it is well suited for interrupted cutting.

For all dimensional and technical specifications please refer to our catalogue.

Series 5535 4 Flute End Mills

HSS Plain Shank Dovetail Cutters (Single Angle Cutters)

Bright finish. Flute type: 30° Helix. Manufactured to BS 122: Part 4: 1980.

Long Series Type 5331T - Inch

For all dimensional and technical specifications please refer to our catalogue.

SwissTech 3 Flute Slot Drills Plain Shank Carbide

Centre cutting. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 48 3 Flute Short SDL-3PS TiALN Coated

Dimensions to DIN 6535 HA

Sherwood Woodruff Cutters Threaded Shank HSS

12mm/1/2" Shank Diameter
Produces closed slots for woodruff keys to DIN 6888. For milling structural, carburizing and heat treated steel up to 900N/mm2. Manufactured to BS 122 : Part 4 : 1980. Made to DIN 850. Shank to DIN 1835/D.

Metric Limits of Tolerances:
Diameter +0.000 -0.127.
Width
2 up to 4 - 0.014 -0.028.
4 up to 7 - 0.020 -0.038.
7mm up - 0.025 -0.047.

Inch Limits of Tolerance:
Diameter +0.015" -0.100".
Width +0.000" -0.001".

For all dimensional specifications please refer to our catalogue.

Metric

Sherwood® Milling Cutters Plain Shank Carbide Micrograin

For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non-ferrous and other soft materials. Manufactured to USCTi Standards. Available in 2 flute for maximum swarf clearance, 4 flute for maximum rigidity and 3 flute offers a combination of the advantages achieved with 2 and 4.

For all dimensional and technical specifications please refer to our catalogue.

Kennedy® Regular Series 2 Flute Slot Drills

Sherwood 2 Flute Slot Drills Threaded Shank HSS-Co 5%

Centre cutting, used for profile milling, milling keyways and producing open slots. Surface treatment: bright finish. Flute type: 30° Helix. Manufactured to BS 122: Part 4: 1980.

Long Series - Metric

HSS Plain Shank Dovetail Cutters (Single Angle Cutters)

Bright finish. Flute type: 30° Helix. Manufactured to BS 122: Part 4: 1980.

Regular Series Type 5321T - Inch

For all dimensional and technical specifications please refer to our catalogue.

Kennedy Endmills

Kennedy KC3 throwaway 3* flute endmills are manufactured HSS-Co 5% making them much tougher than HSS. This means that Kennedy endmills can be used at higher speeds and feeds which in turn gives greater productivity.

Kennedy KC3 endmills are available uncoated, TiN coated and TiCN coated.

TiN (Titanium nitride) provides a surface hardness in the region of 2300HV which offers improved wear resistance, tool life and productivity.

TiCN (Titanium Carbonitride) gives a surface hardness in the region of 3000-3500 HV, excellent wear resistance and good heat resistance. This coating is used for the same things as TiN but also for hard steels, stainless, cast iron, brass & bronze.

For all technical and dimensional specifications please refer to our catalogue.

*Except: 1mm cutters, 2mm and 1/16" ball nose cutters, all of which have two flutes.

KC3 Endmill Long Series 3* Flute Throwaway Cutter Weldon Shank HSS-Co 5% TiCN Coated - Metric

HSS Plain Shank Dovetail Cutters (Single Angle Cutters)

Bright finish. Flute type: 30° Helix. Manufactured to BS 122: Part 4: 1980.

Long Series Type 5331T - Metric

For all dimensional and technical specifications please refer to our catalogue.
