SwissTech 2 Flute Slot Drills Weldon Shank HSS-Co 8%

Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 03 Long SDN-2WL TiCN Coated

Dimensions to DIN 844.

SwissTech 2 Flute Slot Drills Plain Shank Q-Coat Carbide

Centre cutting. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).

For all dimensional specifications please refer to our catalogue.

Series 45 2 Flute Short SDT-2PS TiCN Coated

Dimensions to DIN 6535 HA

OSG Endmills Carbide

OSG WX-EMS short series 4 flute endmills are manufactured from high performance micro grain carbide with an Ultra WX coating (multi layered composite TiALN).

Centre cutting.
Cutting length: 1.5 x D.

The Ultra WX coating has been developed to improve performance in a wide range of materials including nonferrous materials, mild steels, and refined steels This stable performance remains consistent in both wet and dry applications and is intended for a wide range of cutting conditions, from low speed/reduced cutting force applications to high speed/high cutting force applications.

For all technical and dimensional specifications please refer to our catalogue.

WX-EMS Series 4 Flute Endmill 30 Helix Plain Shank Carbide

Sherwood 2 Flute Slot Drills Threaded Shank HSS

Used for milling keyways and slots in one unit. Bright finish. Flute type: 30° Helix. Manufactured to BS 122: Part 4: 1980.

For all dimensional and technical specifications please refer to our catalogue.

Short Series S210T - Metric

Sherwood 2 Flute Slot Drills Threaded Shank HSS

Used for milling keyways and slots in one unit. Bright finish. Flute type: 30° Helix. Manufactured to BS 122: Part 4: 1980.

For all dimensional and technical specifications please refer to our catalogue.

Short Series S210T - Metric

Kennedy® Long Series Slot Drills Plain Shank Carbide Micrograin

For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.

For all dimensional and technical specifications please refer to our catalogue.

Long Series 2 Flute Slot Drills - Metric

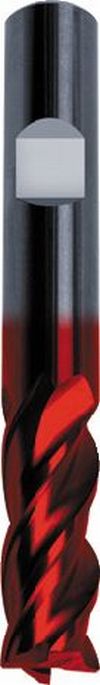

Guhring High Performance Unequal Helix End Mills Solid Carbide

Designed for general-purpose universal milling with a 35/38 unequal helix and Guhring's own unique Fire Coating for increased performance. Unique Fire Coating is applied in Guhring's own coating plants using the PVD process. All-around coating can achieve two to three times the performance of TiN, and considerably better than TiALN. Has excellent heat resistance as well high toughness, therefore it is well suited for interrupted cutting.

For all dimensional and technical specifications please refer to our catalogue.

Series 5535 4 Flute End Mills

Sherwood 2 Flute Long Series Slot Drills Threaded Shank HSS

Used for milling keyways and slots in one unit. Bright Finish. Flute Type: 30° Helix. Manufactured to BS 122: Part 4: 1980.

For all dimensional specifications please refer to our catalogue.

Inch

Kennedy Endmills

Kennedy KC3 throwaway 3* flute endmills are manufactured HSS-Co 5% making them much tougher than HSS. This means that Kennedy endmills can be used at higher speeds and feeds which in turn gives greater productivity.

Kennedy KC3 endmills are available uncoated, TiN coated and TiCN coated.

TiN (Titanium nitride) provides a surface hardness in the region of 2300HV which offers improved wear resistance, tool life and productivity.

TiCN (Titanium Carbonitride) gives a surface hardness in the region of 3000-3500 HV, excellent wear resistance and good heat resistance. This coating is used for the same things as TiN but also for hard steels, stainless, cast iron, brass & bronze.

For all technical and dimensional specifications please refer to our catalogue.

*Except: 1mm cutters, 2mm and 1/16" ball nose cutters, all of which have two flutes.

KC3 Endmill Long Series 3* Flute Throwaway Cutter Weldon Shank HSS-Co 5% - Inch

Kennedy® Milling Cutters Plain Shank Carbide Micrograin

4 Flute
Centre cutting as standard. For maximum strength when milling harder materials where rapid swarf removal is not needed. 4 flute milling cutters have one of the strongest tooth structures available in solid cutters. Manufactured to Works Standards.

For all dimensional and technical specifications please refer to our catalogue.

Regular Series 4 Flute End Mills - Inch

Centre cutting as standard. Offer a combination of advantages achieved with two and four flutes giving profile and peripheral milling capability in addition to slotting and plunging. Manufactured to Ansi Standards.
Inch Tolerances
Nominal Limits Of Tolerance
Diameter High Low
1/16 - 1/4 0.000 -0.002
17/64 - 1 0.000 -0.003
Metric Tolerances
Nominal Limits Of Tolerance
Diameter High Low
1 - 6 0.000 -0.050
7 - 25 0.000 -0.080
Regular Length
