Premium High Carbon Steel Bandsaw Blade

Heat-treated to produce a spring tempered back, giving greater tensile strength and straighter accurate cutting at higher feeds. It is suitable for interrupted cuts and is available as Regular, Hook and Skip teeth.

30m/100ft Coils

For all technical specifications please refer to our catalogue.

Indexa-Seiki VDI Toolholders

Manufactured to DIN 69880. Suitable for use in NC lathes with VDI fixing disc. Features: All tools are fully carburised and hardened. Surface hardness of 58 - 60HRC. Tensile strength above 1000N/mm2. Surfaces blued; seat, parallel shank and shoulder ground. Tools can be adjusted in-situ on radial and axial toolholders. Seat shim allows two tool sizes to be used with one toolholder. Ball regulator (bullseye) provides easy coolant control.

E2-1 Boring Bar Sleeves

Sherwood® Printed Circuit Board Drills Solid Carbide

Suitable for drilling through printed circuit boards. Shank diameter: 3.175mm, 38mm overall length. Manufactured to DIN1899.

For all dimensional and technical specifications please refer to our catalogue.

SwissTech Parabolic Deep Hole Drills HSS-Co 8%

Parabolic flute form drill with high heat resistance to non-alloyed and alloyed steels. Chipbreaking point performs well on long chipping materials with a tensile strength up to 1,300 N/mm2. Drills up to 5 x diameter. TiN coating provides longer tool life. Point angle: 130. Helix angle: Normal. Web thickness: Strengthened. Relief angle: Normal. Tolerance of diameter: h8. Tolerance of shank: f11. Supply unit. All diameters - 1 pce. Manufactured to DIN338RN.

Series 1040 - Metric

Allied Maxcut Series 1 and 1.5 Inserts

For all dimensional specifications please refer to our catalogue.

GEN2 T-A HSS Super Cobalt AM200 Coated

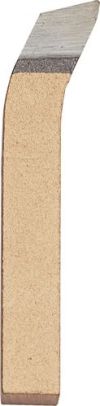

Butt-Welded Lathe Tools

Manufactured from top quality sintered steels. For use on a wide range of applications from roughing to finishing. Manufactured to BS1296:Part 3:1978.

For all dimensional and technical specifications please refer to our catalogue.

Light Turning & Facing - No.1 R/H/No.2 L/H

Rake and Clearance angles:
Top rake: 14.
Front clearance: 6.
Approach angle: -2.
Trail angle: 15.
Side clearance: 6.

Granlund Size 1 Toolholders

Type GS/AS* with through coolant. *Holders type AS must be combined with pilots type RS.

For further specifications please refer to our catalogue.

Guhring GT50 Long Series Drills HSS

A special drill for drilling deep holes in soft materials and those producing long stringy swarf with a case hardness of 500N/mm2 such as mild steel, aluminium, aluminium alloys, zinc, refined copper and wood. Manufactured to DIN340.

For all dimensional specifications please refer to our catalogue.

Series 501 - Metric

Guhring Jobber Drills Steam Tempered HSS

Suitable for drilling steel, cast steel, alloyed and unalloyed, grey cast iron, spheroidal iron, sintered powder metal, German silver and graphite. Manufactured to BS328/DIN338RN.

Black Finish (W-Finish)
This is the most common surface finish and is the result of a steam tempering operation in which steam is passed over the product during a controlled tempering cycle, producing a black oxide layer. Black tools are generally recommended for ferrous applications where the oxide layer aids chip flow, helps to dissipate heat by retaining some coolant on the tool surface and also helps to prevent the tool from staining.

Series 205

SwissTech Parabolic Deep Hole Drills HSS-Co 8% TiN Coated

Parabolic flute form drill with high heat resistance to Non Alloyed and Alloyed Steels. Chipbreaking point performs well on long chipping materials with a tensile strength up to 1,300 N/mm2. Drills up to 5 x diameter. TiN coating provides longer tool life. Manufactured to DIN338RN. Point angle: 130. Helix angle: Normal. Web thickness: Strengthened. Relief angle: Normal. Tolerance of diameter: h8. Tolerance of shank: f11. Supply unit. All diameters - 1 Pce.

Series 1050 - Metric
