Activators for Thread & Gasket Sealants

7649N - Recommended for use when a very fast cure is required. 7471T - Recommended for use at below 15C or on inactive surfaces.

5800 Medium Strength Gasketing Sealant

LOCTITE® 5800 is a single component, medium strength, anaerobic sealant which cures when confined in the absence of air between close fitting metal surfaces. Typical applications include sealing close fitting joints between rigid metal faces and flanges. The product provides resistance to low pressures
immediately after assembly of flanges. Typically used as a form-in-place gasket on rigid flanged connections, e.g. gearbox and engine casings, etc.



Benefits:
• Leading in Health & Safety
• No hazard symbols, no risk phrases & no safety phrases
• “White” Material Safety Data Sheet – no entries in sections
2, 3, 15 and 16 of MSDS acc. to (EC) No. 1907/2006 – ISO
11014-1
• Excellent chemical and thermal resistance of cured product

Technical Data:
• Colour: Red
• Service temperature range: -50°C to +180°C
• Tensile shear strength: 12 N/mm²
• Max. gap: 0.3 mm
• Max Fixture time steel: 25min.
• Strength: Medium
• Cure method: Anaerobic
Pack size: 50ml

5331 - Threadsealer Sealant

Recommended for use on threaded plastic or plastic/metal fittings carrying hot or cold water e.g. industrial and agricultural plastic water pipe systems, or drainage systems.
WRC approved to 85C (Potable Water)
P1 NSF Reg. No:123620

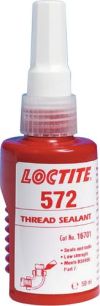

572 - Thread Sealant - Coarse Threads - Slow Cure

Recommended for all coarse threads where slow cure is required to allow final adjustment before sealing. Meets BS 6956 Type A for sealing gas fittings. WRC approved for use with potable water.

5400 Medium Strength Thread Sealant

LOCTITE® 5400™ is designed for the locking and sealing of
metal threaded pipes and fittings. The product cures when
confined in the absence of air between close fitting metal
surfaces and prevents loosening and leakage from shock and
vibration. The thixotropic nature reduces the migration of liquid product after application to the substrate.



Technical Data:
• Maximum thread size: M80, R3"
• Strength: Medium
• Viscosity: 5,000 - 20,000 mPa∙s
• Breakaway torque: 19Nm
• Service temperature range: -55°C - +150°C
• Pack size: 50ml

Benefits:
• Leading in health and safety.
• No hazard symbols, no risk phrases & no safety phrases.
• “White” Material Safety Data Sheet – no entries in
sections
2, 3, 15 and 16 of MSDS acc. to (EC) No. 1907/2006 – ISO
11014-1.
• Excellent chemical and thermal resistance of cured product.
• Thixotropic nature: less migration of liquid product after
application to the substrate.

510 - Flange Sealant

Recommended for high temperature applications (up to 200C), where maximum solvent resistance is required.
AGA approved No. 2590 up to 6900kPA (100psi).

Activators for Thread & Gasket Sealants

7649N - Recommended for use when a very fast cure is required. 7471T - Recommended for use at below 15C or on inactive surfaces.

6300 High Strength Retaining Compound

LOCTITE® 6300™ is designed for the bonding of cylindrical fitting parts. The product cures when confined in the absence of air between close fitting metal surfaces and prevents loosening and leakage from shock and vibration. Typical applications include holding gears and sprockets onto gearbox shafts and rotors on electric motor shafts.



Technical Data:
• Diametrical clearance: Up to 0.15mm
• Service temperature range: -55°C to + 175°C
• Tensile shear strength: 20 N/mm²
• Fixture time on steel: 10 min.
• Pack size: 50ml

Benefits:
• Leading in Health & Safety
• No hazard symbols, no risk phrases & no safety phrases
• oeWhite” Material Safety Data Sheet ?? no entries in sections
2, 3, 15 and 16 of MSDS acc. to (EC) No. 1907/2006 ?? ISO
11014-1 Good thermal resistance

Plasti-Coll X10 Gas Jointing Compound

Originally developed to meet the requirements of the liquified petroleum industry for fitting pipes and has been used for years in the assembly and installation of appliances that use natural gas, bottled propane or butane. Reddish brown in colour. Temperature resistant -40C to 200C. Conforms to BS695: Parts 5 & 6 Type 'A' : 1992

542 Hydraulic Sealant

Medium strength, medium viscosity. Impervious to all common hydraulic fluids including fire resistant synthetics. Will not clog valves or fine filters. Replaces tapes, pastes and self-sealing compression joints.
Recommended for threaded fittings as used in hydraulic and pneumatic installations.
Medium threadlocking strength.
Suitable for high pressure systems.
Temperature range: -55C to 150C
