Hylotyte Red - semi hardening gasket

Hylotyte Red - semi hardening gasket compound offers the user a high sealing performance with the advantage that the product is non-flammable and will not oxidise within the joint even after prolonged service. This ensures exceptional sealing performance even after many years.

518 - Flexible Fast Cure Gasket

Recommended for sealing aluminium flanges and fills up to 0.5mm. Withstands fluctuations in pressure, temperature and vibration. Replaces pre-cut gaskets on rigid parts.

510 - Flange Sealant

Recommended for high temperature applications (up to 200C), where maximum solvent resistance is required.
AGA approved No. 2590 up to 6900kPA (100psi).

Activators for Thread & Gasket Sealants

7649N - Recommended for use when a very fast cure is required. 7471T - Recommended for use at below 15C or on inactive surfaces.

Flange Sealant Gasket Dressing

Suitable for parts which require disassembly, Resistant to petrochemicals, lubricants, water, weak acids & alkalis.

5922

5800 Medium Strength Gasketing Sealant

LOCTITE® 5800 is a single component, medium strength, anaerobic sealant which cures when confined in the absence of air between close fitting metal surfaces. Typical applications include sealing close fitting joints between rigid metal faces and flanges. The product provides resistance to low pressures
immediately after assembly of flanges. Typically used as a form-in-place gasket on rigid flanged connections, e.g. gearbox and engine casings, etc.



Benefits:
• Leading in Health & Safety
• No hazard symbols, no risk phrases & no safety phrases
• “White” Material Safety Data Sheet – no entries in sections
2, 3, 15 and 16 of MSDS acc. to (EC) No. 1907/2006 – ISO
11014-1
• Excellent chemical and thermal resistance of cured product

Technical Data:
• Colour: Red
• Service temperature range: -50°C to +180°C
• Tensile shear strength: 12 N/mm²
• Max. gap: 0.3 mm
• Max Fixture time steel: 25min.
• Strength: Medium
• Cure method: Anaerobic
Pack size: 50ml

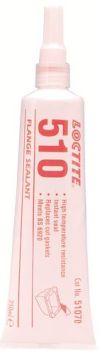

510 - Flange Sealant

Recommended for high temperature applications (up to 200C), where maximum solvent resistance is required.
AGA approved No. 2590 up to 6900kPA (100psi).
