Kennedy® 3D Axis Gauging

The New Generation of NC axis gauging equipment, for quick, accurate setting of all three axes (X, Y, Z) by analogue differential indicator. Suitable for all machine tools with CNC, NC or DRO and also for EDM/spark erosion tools - the stylus is electrically insulated from the spindle. Universal - one tool measures length, height, diameter and centre. The synchronous single needle allows greater needle displacement before reaching ‘12 o'clock’. A positive reading is given regardless of direction of axis movement. No calculations and no ‘trial and error' involved. Increases production and efficiency, reduces job time and operator requirement. The stylus is designed to break on a ‘nominal fracture' before the workpiece or tester can be damaged. Three plug in styli types can be changed in seconds without the use of special tools.
Pre-adjusted to a concentricity of 0.01mm maximum.
Indicator diameter: 50mm.
Clamping shank diameter: 20mm.

Kennedy® 3D Axis Gauging

Conical precision plug-in mechanism. Insulated, no electrical conductivity. Designed-in nominal fracture point.
Type: short.
Length: 33mm.
Anvil diameter: 4.0.
Weight: 3g.

Stylii

Kennedy® 3D Axis Gauging

Conical precision plug-in mechanism. Insulated, no electrical conductivity. Designed-in nominal fracture point.
Type: long.
Length: 72mm.
Anvil diameter: 6.0.
Weight: 10g.

Stylii

Kennedy® Magnetic Stand Fitments

All Main columns are threaded M8 x 1.25mm and are interchangeable with Kennedy, Oxford, Mitutoyo etc. base units except mini-mag (M6 x 1mm) also suitable for incorporating into special fixtures or threaded pot magnets.

Light Duty Fitment - Plain

Fitted as standard to KEN-333-2010K.
Column: 6.3mm x 120mm.
Threaded: M6 x 1mm.

Kennedy® Mag Stands

Fitted as standard to KEN-333-2060K & -2070K. 4 magnetic faces, bottom, sides and 45° angle face for curved surfaces.
Threaded: M8 x 1.25mm.
Magnetic pull: 80kg.

Push Button Base - 80kg

Kennedy® Magnetic Stand Fitments

All Main columns are threaded M8 x 1.25mm and are interchangeable with Kennedy, Oxford, Mitutoyo etc. base units except mini-mag (M6 x 1mm) also suitable for incorporating into special fixtures or threaded pot magnets.

Crossbar Assembly

With lug adaptor, 1/4" I/D lug. Accepts 4, 6 and 8mm spigot. To fit 12mm bar.

Kennedy® Magnetic Stand Fitments

All Main columns are threaded M8 x 1.25mm and are interchangeable with Kennedy, Oxford, Mitutoyo etc. base units except mini-mag (M6 x 1mm) also suitable for incorporating into special fixtures or threaded pot magnets.

Spare Knuckle Assemblies

For fitting between columns and mounting spigots. Simple Type.

Kennedy® Magnetic Stand Fitments

All Main columns are threaded M8 x 1.25mm and are interchangeable with Kennedy, Oxford, Mitutoyo etc. base units except mini-mag (M6 x 1mm) also suitable for incorporating into special fixtures or threaded pot magnets.

Medium Duty Fitment - 3 Point

Fitted as standard to KEN-333-2110K.
To suit 1/4" I/D lug, dovetails, stem/spigot diameter 5/16".
3 point adjustable column: 15mm x 280mm max.
Threaded: M8 x 1.25mm.

Kennedy® Magnetic Stand Fitments

All Main columns are threaded M8 x 1.25mm and are interchangeable with Kennedy, Oxford, Mitutoyo etc. base units except mini-mag (M6 x 1mm) also suitable for incorporating into special fixtures or threaded pot magnets.

Medium Duty Fitment - Plain

Fitted as standard to KEN-333-2080K. To suit 1/4" I/D/ lug, stem/spigot diameter 5/16".
Column: 12.5mm x 185mm.
Cross Bar: 6.3 x 150mm.
Threaded: M8 x 1.25mm.

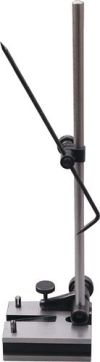

Kennedy® Surface Gauges

Used for marking out lines parallel to a true edge or groove, and also to mark the centre of round bars. Machined base, two pillars, a double ended scriber and an adjustable attachment for holding scribers up to 1/4" diameter on to the pillar. The base has a machined V groove for use on pipes and round bar and two frictionally held pins which are used as a guide when sliding along the true edge or groove. The angle of the pillar can be finely adjusted with the use of a knurled thumb screw. Supplied with 2 pillars. Base dimensions: 4300K: 75 x 58mm. 4320K: 105 x 85mm.
